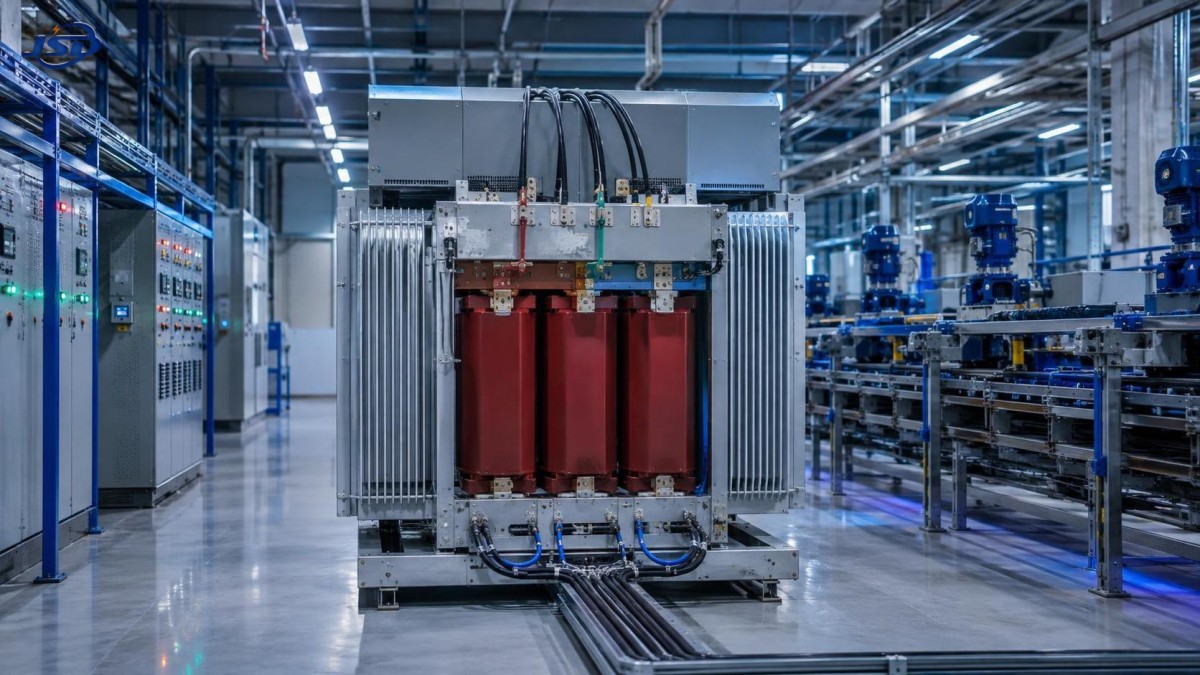

Selecting a Three-Phase Amorphous Alloy Transformer for Variable Industrial Loads

Selecting a Three-Phase Amorphous Alloy Transformer for Variable Industrial Loads

Selecting a three phase amorphous alloy transformer for an industrial project is rarely a simple capacity calculation. Rated kVA still matters, of course, but it does not explain how the transformer will behave when a plant shifts from light production to full output, when large motors start, or when renewable generation changes the direction and quality of power flow.

This is where many projects become unnecessarily expensive. A transformer may be oversized to “leave room,” yet spend most of its operating life lightly loaded. Or it may be selected close to the expected average demand, only to experience repeated thermal stress during peak production periods. For facilities with variable loads—such as processing plants, pumping stations, mining operations, logistics hubs, data-intensive workshops, and photovoltaic-linked sites—the right choice depends on the load profile, not just the nameplate rating.

Amorphous alloy core technology is particularly relevant where transformers remain energized for long periods while demand varies. Its main attraction is lower no-load loss compared with conventional silicon steel core designs. That advantage can be meaningful in a facility that operates around the clock, has seasonal production changes, or maintains multiple distribution transformers in standby-ready condition. Still, lower no-load loss should be treated as one part of the decision, not the entire decision.

Start with the Load Curve, Not the Peak Number

The first question should be: what does demand actually look like over time? Project teams often receive a single maximum-demand figure from an early electrical design package. That figure is useful for checking the upper limit, but it does not show whether the load stays near that level for ten minutes a day, two hours per shift, or most of the year.

A practical review should separate at least four conditions: base load, normal operating load, recurring peak load, and abnormal or contingency load. The distinction matters because transformer losses do not behave in the same way. Core loss is present whenever the transformer is energized, while winding loss rises with load current. A site with a modest but continuous base load may gain more from an amorphous alloy core than a site that only energizes its transformer during short daytime operations.

For example, a factory with batch production may run at 35% to 50% loading for much of the week, then climb sharply when heating systems, compressors, conveyors, and process motors operate together. In that case, selecting solely for the average load risks poor temperature performance at the peak. Selecting solely for the peak can raise initial cost and leave an oversized unit consuming no-load energy for years. The better approach is to model the expected loading duration and confirm the manufacturer’s thermal capability, impedance, and loss values at the stated operating conditions.

Do not assume that “variable load” automatically means “larger transformer.” Sometimes the more sensible arrangement is two smaller units with a bus-tie strategy, allowing one transformer to carry low-demand periods and both units to share higher demand. This can reduce unnecessary energized capacity, but it also adds protection, switching, footprint, and operating complexity. It is a system decision rather than a transformer-only decision.

Why No-Load Loss Deserves More Attention

Industrial teams naturally focus on high-load performance because production peaks are visible and disruptive. No-load loss is less visible; it continues quietly whenever the transformer is connected to the network. For an installation expected to remain energized day and night, that continuous energy draw deserves a lifecycle-cost calculation.

A three phase amorphous alloy transformer can be a strong candidate where annual energization hours are high and utilization is uneven. The amorphous metal core is designed to reduce hysteresis-related core losses. In plain project terms, it can make better economic sense when the transformer spends significant time energized below full load.

However, procurement documents should not compare “amorphous” and “conventional” units only by one quoted loss number. Ask for guaranteed no-load loss, load loss at the specified reference temperature, impedance voltage, sound level, and the test method or applicable standard. Also confirm whether auxiliary equipment, cooling arrangements, and tap-changer configuration are included in the evaluation. A low-loss core does not compensate for a poorly matched cooling class or an unsuitable voltage-control arrangement.

The financial comparison should use the project’s own energy price, operating hours, expected loading profile, and evaluation period. If those inputs are uncertain, it is better to show a sensitivity range than to present a single payback figure as if it were guaranteed. Electricity tariffs, production schedules, and future expansion plans can all shift the result.

Check Voltage Stability Where the Load Actually Connects

Variable industrial demand is often accompanied by voltage variation. Large motor starts, welding equipment, crushers, arc furnaces, frequent switching, and power-electronic drives can all affect voltage conditions. The transformer must be considered together with feeder length, upstream short-circuit capacity, cable size, capacitor banks, harmonic filters, and protection settings.

Impedance is a common source of misunderstanding. A higher impedance can help limit fault current, which may simplify downstream switchgear duties. Yet it can also create a greater voltage drop under heavy load or during motor starting. A lower impedance may improve voltage regulation but increase available fault current. There is no universally “best” value. The appropriate impedance must fit the network study and the equipment connected to the secondary bus.

Tap selection needs the same level of care. Off-circuit taps may be sufficient for a stable utility supply and predictable seasonal changes. Where incoming voltage moves materially or where the process has tight voltage tolerance, an on-load tap changer may be worth evaluating. That does not mean every industrial transformer needs one. On-load tap changing introduces additional equipment, maintenance requirements, and control logic, so its value should be demonstrated by operating conditions rather than added as a default feature.

Harmonics and Non-Linear Loads Can Change the Specification

Modern industrial sites increasingly include variable-frequency drives, rectifiers, UPS systems, battery storage converters, electric vehicle charging, and other non-linear loads. These devices can introduce harmonic current, increase winding heating, and influence losses beyond what a simple kVA calculation suggests.

If the load contains a meaningful proportion of power electronics, request harmonic data early from the process designer or equipment supplier. The transformer supplier can then assess whether derating, a different winding arrangement, electrostatic shielding, enhanced cooling, or a harmonic-mitigating design is appropriate. Waiting until commissioning to discover overheating, nuisance tripping, or unacceptable voltage distortion is a costly way to resolve a specification gap.

This point is especially relevant in new-energy facilities. A photovoltaic booster station may appear electrically simple from a distance, but its inverter behavior, grid-code obligations, reactive-power control, and export profile must be considered at the system level. The distribution transformer feeding auxiliary loads may have very different requirements from the main step-up transformer connecting generation to the grid.

Installation Conditions Often Decide the Real Reliability

A well-designed transformer can still have a short or troubled service life if installation conditions are ignored. Ambient temperature, altitude, humidity, dust, salt contamination, corrosive gases, ventilation, seismic requirements, and access for maintenance should be recorded before technical approval. These are not minor site notes. They affect insulation selection, cooling performance, enclosure design, terminal arrangement, and service planning.

For indoor transformer rooms, verify the real ventilation path rather than relying on a drawing that labels the room “ventilated.” Hot air must be able to leave the room, and replacement air must enter without creating a recirculation problem. For outdoor installations, consider drainage, flood exposure, cable entry, noise limits near occupied buildings, and the practical space needed for inspection and replacement.

Oil-immersed equipment may be appropriate at higher voltage levels or for larger power-transfer duties, while dry-type transformers are frequently considered for indoor distribution locations where fire-safety and space constraints dominate. The correct choice depends on the project’s voltage class, capacity, environmental requirements, local rules, and operating philosophy. It should not be reduced to a blanket preference for one construction type.

Coordinate the Distribution Transformer with the Upstream Network

A three phase amorphous alloy transformer is commonly evaluated at the distribution level, but its performance is shaped by the upstream supply arrangement. In larger industrial parks, regional substations, mining operations, and renewable-energy projects, the distribution design may sit behind a high-voltage step-up or step-down transformer. Voltage ratio, vector group, neutral grounding, fault level, metering requirements, and protection coordination need to remain consistent across the chain.

For projects requiring higher-voltage transformation, an upstream solution such as the 110kV Oil-Immersed Transformer may be considered as part of the wider network architecture. It is designed for voltage transformation and reliable power transmission in applications including regional substations, industrial and mining enterprises, power plant boosting stations, and grid-connected new-energy projects. Its stated capacity range can extend to 200MVA, while the final configuration must still be matched to the grid study and site conditions.

At this level, project managers should resist treating the high-voltage transformer and lower-voltage distribution units as separate procurement packages with no technical conversation between them. A mismatch in vector group, protection philosophy, or expected operating mode can cause delays long after equipment orders are placed.

What to Ask Before Releasing the Purchase Order

The specification should describe the electrical duty, not merely a generic transformer type. A capable manufacturer will need more than voltage ratio and kVA. Jinshida Electric Power Technology Co., Ltd., which works in transmission and distribution equipment for industrial, grid, infrastructure, and new-energy applications, emphasizes the value of technical coordination before manufacture. That approach is useful because many preventable issues begin with incomplete project inputs.

• Provide measured or estimated load curves, including motor-starting and peak-demand events.
• State the required primary and secondary voltages, frequency, vector group, and grounding method.
• Identify harmonic-producing loads, power-factor correction equipment, and future expansion allowances.
• Confirm installation environment, altitude, ambient temperature range, access limits, and noise expectations.
• Request guaranteed loss figures and clarify the standard, reference temperature, and acceptance-test requirements.
• Review protection coordination, short-circuit withstand duty, terminals, cable-box arrangement, monitoring, and spare-part expectations.

Also ask which requirements are mandatory and which are preferences. Projects occasionally combine every available option—monitoring, special coatings, enhanced insulation, extra taps, redundant accessories—without checking whether the site truly needs them. The result can be longer lead times, more difficult maintenance, and limited practical benefit. Conversely, eliminating necessary monitoring or environmental protection to save initial cost can create a much larger risk later.

A Decision That Should Survive the Operating Reality

The right transformer is not necessarily the unit with the lowest purchase price, the lowest quoted no-load loss, or the highest nominal capacity. For variable industrial loads, the best selection is the one that remains efficient during normal operation, manages thermal and voltage stress during predictable peaks, fits the protection scheme, and can be serviced in the actual installation environment.

Before final approval, review the load study with the transformer supplier, electrical designer, and protection engineer in the same conversation. If the team can explain how the unit will perform at low load, normal load, peak load, motor-starting conditions, and future expansion, the selection is probably mature. If the discussion still revolves around one kVA number, the project is not ready to order.
