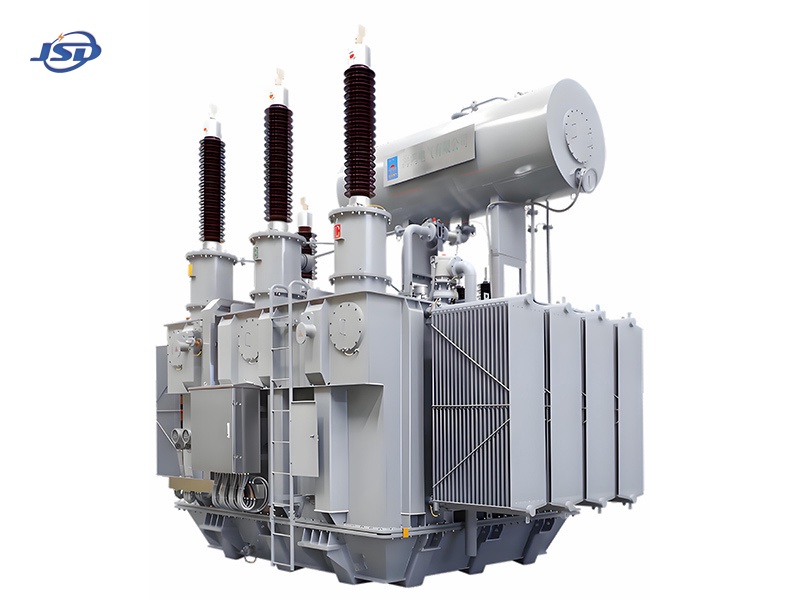

Against the backdrop of global electricity demand growth, 110kV three-phase oil immersed transformers are widely used in various fields such as State Grid, industrial and mining enterprises, regional substations, power plant boosting stations, and public facilities. They are mainly used for boosting or reducing voltage, achieving efficient transmission and distribution of electrical energy. The maximum capacity can reach 200mva. High reliability operational verification in over 50 countries and regions worldwide; It has been sold to countries and regions such as Tanzania, Zimbabwe, Ghana, South Africa, Kenya, Zambia, Sudan, Libya, Congo, United Arab Emirates, Saudi Arabia, Iraq, Syria, Bangladesh, etc.
Product Description
Overview & Advantages
1. Standards: GB, IEC, GOST, EN, NF, ANSI/IEEE (customizable according to customer standards)
2. Certification: ISO、CE、IEC、SABS、COC、CSA、UL
3. Efficiency: The efficiency of a 110kV transformer can exceed 99% and meet the European 2015/2014/548/EC ecodesign Tier 2 energy efficiency regulations.
4. Successful case verification: Accumulated a large amount of 110kV project experience in global power grid transformation, new energy access (such as photovoltaic booster stations) and other fields, verified the stability of products under complex working conditions, and designed a lifespan of more than 30 years.
5. Environmental Protection and Sustainable Development: Adopting FR3 environmentally friendly insulation oil and recyclable materials to reduce carbon footprint, in line with the "dual carbon" policy orientation.
110kv Power Transformer Type
a 110kV transformer can be a three-phase double winding transformer, a three-phase three winding transformer, or an autotransformer transformer. These types of transformers have the same principle, but their structures are different, and different types of transformers have different applications. JINSHIDA provides you with the most ideal solution.
110kV three-phase double winding transformer
110kV three-phase three winding transformer
110kV autotransformer transformer
FAQ
Q1: What is a 110kV oil-immersed power transformer?
A: A 110kV oil-immersed power transformer is a piece of electrical equipment used in high-voltage power transmission and distribution systems. It is primarily used for voltage transformation and power transmission, ensuring a stable and reliable power supply for power grids, industrial enterprises, and large-scale energy projects.
Q2: In which fields are 110kV oil-immersed transformers primarily used?
A: These products are widely used in electrical substations, new energy generation projects, industrial parks, power supply systems for large enterprises, urban power grid construction, and various high-voltage transmission and distribution projects.
Q3: What capacity options are available for 110kV oil-immersed transformers?
A: 110kV oil-immersed transformers offer a wide range of capacities and can be designed to meet specific project requirements. Common capacities include 20MVA,
Q4: What cooling methods are used for 110kV transformers?
A: These products typically employ cooling methods such as oil-immersed self-cooling (ONAN) or oil-immersed forced-air cooling (ONAF); the appropriate cooling scheme is selected based on transformer capacity, operating environment, and load conditions.
Q5: What safety protection features do 110kV oil-immersed transformers have?
A: These products can be equipped with various protection devices—such as gas protection, differential protection, overcurrent protection, temperature protection, and pressure relief protection—to enhance operational safety and reliability.
Q6: What is the service life of a 110kV oil-immersed transformer?
A: Under normal operating conditions and with regular maintenance, 110kV oil-immersed transformers have a long service life; the design life typically exceeds 30 years, meeting the requirements for stable, long-term operation.
Q7: Can 110kV oil-immersed transformers be used in new energy projects?
A: Yes. These products are widely used in new energy projects—such as photovoltaic power plants, wind power projects, and energy storage stations—for grid-connection step-up, power transmission, and grid interconnection.
Q8: Can 110kV oil-immersed transformers be customized?
A: Yes. Technical parameters—such as rated capacity, voltage class, connection group, cooling method, protection configuration, and installation type—can be customized according to customer needs to meet the requirements of various power engineering projects.
