How impedance in a 3 phase power transformer affects fault levels

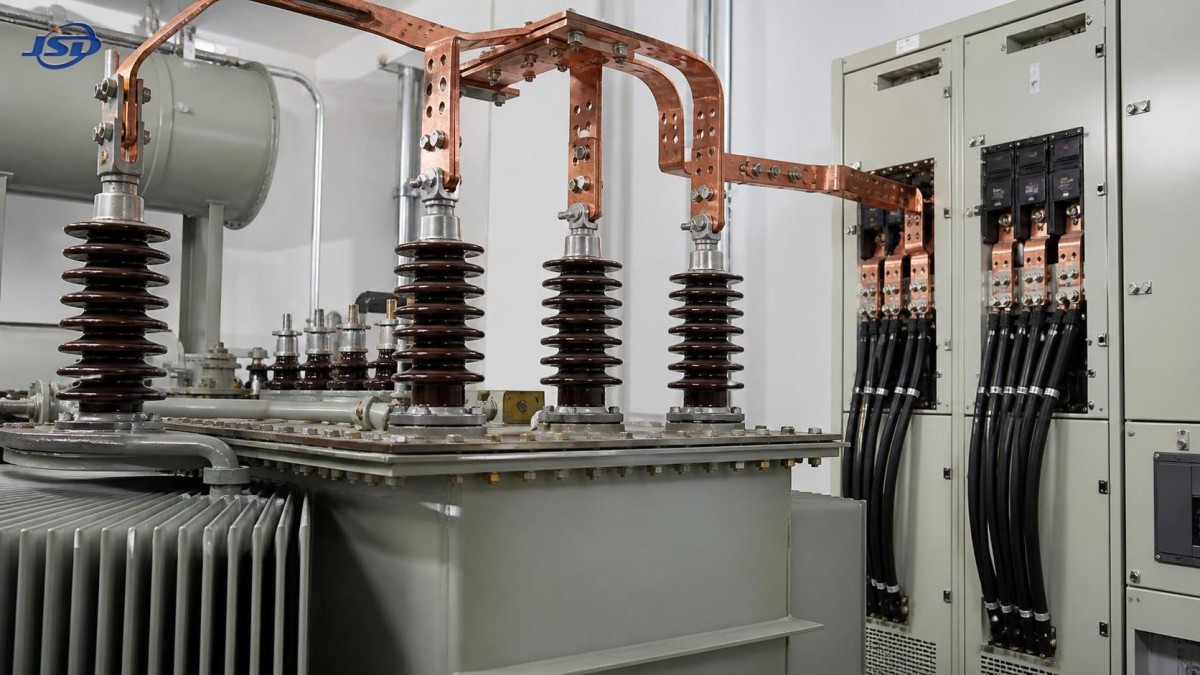

The impedance of a three-phase transformer is one of the few nameplate values that directly influences whether a distribution system remains controllable during a fault. It determines how much short-circuit current the transformer will allow to flow from the upstream source into a fault on its secondary side. That result affects breaker duties, fuse selection, relay settings, busbar withstand ratings, arc-flash assessments, and the ability of protective devices to isolate the correct section of the network.

For technical evaluators, impedance is therefore not simply a transformer manufacturing detail. A 3 phase power transformer with an unsuitable impedance can create problems at either end of the design spectrum: excessive fault current that exceeds equipment ratings, or insufficient current that makes protective devices slow, insensitive, or poorly coordinated. The right value depends on the complete system rather than the transformer alone.

What transformer impedance actually represents

Transformer impedance is commonly stated as percentage impedance, often written as %Z or impedance voltage. In practical terms, it is the percentage of rated primary voltage required to circulate rated current through the transformer when its secondary terminals are short-circuited under a controlled test condition.

If a transformer has 5% impedance, approximately 5% of its rated voltage is needed to produce rated current during the short-circuit test. This does not mean the transformer will only deliver 5% of its normal power. It means that its internal impedance limits fault current to a level related to 100 divided by the impedance percentage, assuming the upstream source is sufficiently strong.

A simplified first estimate is:

Available transformer-limited fault current = rated full-load current x (100 / %Z)

For example, a 2,000 kVA transformer rated at 400 V has a secondary full-load current of roughly 2,887 A. With 5% impedance, the transformer contribution to an ideal bolted three-phase fault at its terminals is approximately 57.7 kA:

2,887 A x (100 / 5) = 57,740 A

This is a starting point, not a final protection study. The actual fault level will also depend on source impedance, cable impedance, busway, motors, generator contribution, transformer tap position, fault type, and system operating configuration. Still, the relationship is directionally clear: lower transformer impedance produces higher prospective fault current; higher impedance reduces it.

Why a small percentage change can matter

The relationship between impedance and fault current is inverse rather than linear in the usual sense. Moving from 6% to 5% impedance does not reduce fault current by one-sixth. It raises the transformer-limited fault current by about 20%. Moving from 5% to 4% raises it by about 25%.

That sensitivity is important near the interrupting rating of low-voltage switchgear. A design that appears acceptable with a 50 kA breaker rating may become non-compliant after a transformer impedance assumption is revised from 5.75% to 5.0%, especially where the transformer is physically close to the main switchboard and secondary conductors are short.

The table should not be used to select a transformer by itself. Transformer ratings and impedance ranges vary with capacity, voltage class, construction, and applicable standards. A value that is normal for a large utility-connected transformer may be impractical for a compact low-voltage distribution unit. The key point is that impedance must be treated as a design input, not an interchangeable catalogue number.

The fault level is a system result, not a transformer-only result

A frequent mistake is to calculate fault current using only the transformer nameplate impedance and assume that the result applies everywhere on the secondary network. In reality, the maximum fault level is usually at or very near the transformer secondary terminals. Each length of cable, bus duct, circuit breaker, disconnect, and conductor adds impedance and reduces fault current further downstream.

At the same time, the upstream utility or medium-voltage system cannot be ignored. A transformer connected to a weak feeder may not reach its theoretical transformer-limited fault current because the source impedance is already significant. Conversely, a facility supplied from a high-capacity substation can have a very strong source, making the transformer impedance the dominant limiting element.

Motor loads also deserve attention. During the initial period of a low-voltage fault, large induction motors can feed current back into the fault. This contribution decays rapidly, but it may affect the momentary and interrupting duty of nearby breakers. Synchronous machines and rotating plant can contribute more substantially depending on their excitation and operating state.

For a credible short-circuit study, evaluators should establish at least the following:

• The maximum and minimum utility fault level at the point of common coupling, preferably supplied in MVA or kA with the relevant voltage basis.
• The transformer kVA rating, primary and secondary voltage, vector group, nominal impedance, and impedance tolerance.
• The actual or planned secondary conductor lengths, sizes, installation arrangement, and parallel runs.
• Whether generators, large motors, capacitor banks, photovoltaic inverters, battery systems, or multiple transformers can contribute to fault conditions.
• Normal and alternative operating configurations, including bus ties, transfer schemes, and standby generation modes.

The minimum fault-current case is as important as the maximum case. Maximum fault current tests equipment withstand and interrupting capacity. Minimum fault current tests whether an overcurrent device can detect and clear a fault quickly enough. A system can pass one test and fail the other.

Lower impedance is not automatically better

Lower impedance transformers are sometimes preferred because they generally provide better voltage regulation under load and can support higher current during motor starting. For facilities with large motors, crushers, compressors, pumps, or high-inrush process loads, this can be a real advantage. Lower impedance reduces voltage dip across the transformer during a major current demand.

But that benefit comes with higher fault current. The resulting switchboard may require a higher short-circuit current rating, more robust busbars, higher-capacity circuit breakers, or additional current-limiting measures. On an existing site, a replacement transformer with lower impedance can unintentionally make otherwise serviceable downstream equipment under-rated.

Higher impedance limits fault current and may allow distribution equipment with lower interrupting ratings to remain suitable. It can also be useful where several transformers operate in parallel and the combined available fault current would otherwise become excessive. However, higher impedance increases voltage drop under load and can make motor starts more difficult. It may also reduce the fault current available to operate downstream protective devices, particularly at remote cable ends.

The decision is therefore a balance between fault limitation, voltage performance, starting duty, continuity requirements, and equipment cost. It should not be reduced to a general preference for either a “low impedance” or “high impedance” transformer.

Parallel transformers require matching beyond kVA rating

Parallel transformer operation is one of the situations in which impedance becomes especially consequential. When transformers share a secondary bus, their impedances influence how load and fault current divide between them. Transformers with materially different impedance values do not necessarily share current in proportion to their kVA ratings. The unit with lower impedance tends to take a larger share of the load and also contributes more heavily to a bus fault.

Voltage ratio, vector group, phase displacement, tap settings, and impedance characteristics must all be evaluated together. A common nominal secondary voltage does not prove that two units are suitable for parallel operation. Even when parallel operation is technically possible, the increased combined fault level may exceed the rating of the common switchboard or bus coupler.

This issue often appears during phased capacity expansion. A site may begin with one transformer and later add a second unit to improve redundancy or accommodate production growth. Before closing a bus tie, the engineering team should recalculate fault duty at all affected buses and verify the protection scheme in both split-bus and parallel-bus states.

Impedance tolerance can change the final answer

Engineering documents often use a nominal impedance value, while the delivered transformer may be permitted to vary within a specified tolerance under the applicable standard or contract. The exact allowable tolerance should be checked against the governing standard and the project specification rather than assumed. A short-circuit study that sits close to a breaker rating should account for the low-impedance tolerance case, because that condition produces the higher fault current.

For example, designing around a nominal 6% impedance transformer without checking its permitted negative tolerance can create an avoidable risk. The installed unit may legitimately have lower actual impedance than the calculation assumed. The same principle applies when selecting protective settings: a higher-than-expected impedance can reduce the current seen by a downstream relay during a remote fault.

Procurement specifications should therefore identify more than a target impedance percentage. They should state the acceptable impedance range, the reference temperature and test conditions where relevant, the required documentation, and the consequences of deviation. If switchgear duty is near a limit, a maximum available fault-current value should be made explicit in the design criteria.

Generator-backed systems need a separate view

Fault levels change materially when a facility transfers from utility supply to standby generation. The generator’s subtransient reactance, the transformer impedance, and the generator control response together determine available fault current. Unlike a strong grid, a diesel generator may provide only a limited multiple of rated current, and that contribution can decay quickly.

This creates a protection coordination challenge. A breaker that trips rapidly on a utility-fed fault may see much less current when the same bus is generator-fed. The protection setting must still clear faults without unnecessarily disconnecting the whole emergency system. This matters in hospitals, hotels, schools, office buildings, communication stations, and residential developments where essential loads may be transferred automatically.

When a standby source is part of the design, the transformer study should be linked to generator data rather than treated as a utility-only exercise. A weatherproof, low-noise package such as the Silent Canopy Diesel Generator Set may be configured for three-phase, four-wire 230/400 V service and automatic transfer duty, but the useful engineering question is not simply its kVA rating. Evaluators need the generator reactance data, alternator capability, control behavior, transformer connection, and protection philosophy for the emergency operating mode.

In generator-backed networks, it is often necessary to assess both close-in faults, which may impose severe stress on the generator and transformer, and remote faults, where current may be too low for conventional instantaneous overcurrent protection. Ground-fault arrangements require particular care because neutral grounding and transformer vector group can significantly change the available zero-sequence fault path.

Standards guide the method, but project assumptions still matter

Short-circuit calculations are commonly performed using methods aligned with IEC 60909 or ANSI/IEEE practices, depending on the project location, utility requirements, and contractual basis. Equipment ratings may also be governed by applicable IEC or UL/ANSI product standards. The calculation method, voltage factor, treatment of motor contribution, asymmetrical current, and equipment duty definitions need to be consistent across the study.

Technical evaluators should avoid mixing values from different calculation approaches without checking their basis. A symmetrical RMS short-circuit current, a peak making current, an asymmetrical interrupting current, and a short-time withstand rating are related but not identical quantities. A switchgear assembly may be adequate for one measure and inadequate for another.

It is also important to distinguish transformer thermal withstand from downstream equipment capability. The transformer may survive a fault for a defined duration when protected correctly, but this does not mean the low-voltage switchboard, cables, panelboards, or molded-case breakers can withstand the same fault level and clearing time.

A practical review sequence before transformer selection

Before approving a transformer impedance value, begin with the future network, not the present nameplate. Confirm whether capacity growth, a second transformer, a bus tie, distributed generation, or a standby generator will alter the fault level during the asset life. Review the maximum and minimum network conditions separately. Then compare calculated fault duty with every relevant equipment rating, including equipment that may be energized only during maintenance or transfer operations.

Next, test voltage-drop and motor-starting performance at the proposed impedance. If higher impedance is being used to control fault current, verify that the most demanding starting and step-load cases remain acceptable. If lower impedance is being proposed for voltage performance, confirm that the increased fault duty does not force disproportionate upgrades to switchgear and protection equipment.

Finally, turn the chosen assumptions into procurement requirements. The transformer supplier should provide certified or documented impedance data, while the switchgear supplier should confirm applicable short-circuit ratings under the project’s stated conditions. The calculation should be updated when final cable lengths, utility data, transformer test information, or generator selections differ from the original design basis.

Impedance is not an isolated transformer parameter. It is the link between transformer selection and the fault behavior of the entire electrical system. Treating it as an early, controlled engineering decision gives technical evaluators a clearer path to equipment that is both adequately protected and capable of operating under realistic grid and standby conditions.
