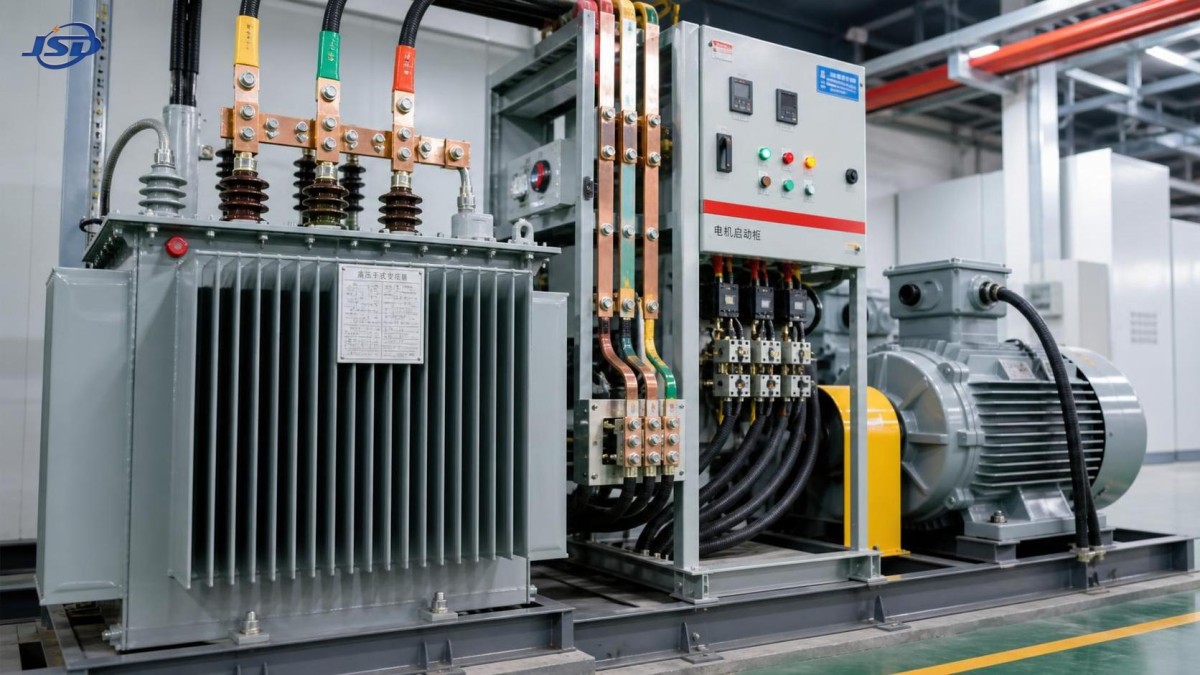

Choosing a 3 phase transformer for motor starting loads

Choosing a 3 phase transformer for motor starting loads is not a nameplate exercise. A transformer that looks adequate at steady running load can still produce a deep voltage dip when the motor starts, leading to slow acceleration, contactor drop-out, drive faults, nuisance protection trips, or repeated thermal stress. The right selection starts with the actual starting event: how much current the motor draws, how long it takes to accelerate, what else is connected to the same bus, and how much voltage reduction the process can tolerate.

For most projects, the practical objective is simple: keep voltage at the motor terminals high enough for reliable acceleration without buying far more transformer capacity than the installation needs. Reaching that balance requires looking beyond kVA.

Start with the motor, not the transformer rating

The first number many people use is the motor's full-load current or rated kW. That number is necessary, but it does not describe the hardest moment for the supply system. Starting current is the real issue.

A conventional direct-on-line (DOL) start can draw several times the motor's full-load current for a short period. The exact value depends on the motor design, voltage, rotor condition, driven equipment, and starting point on the supply waveform. A lightly loaded fan may accelerate quickly, while a loaded conveyor, crusher, compressor, mixer, or pump may hold elevated current for much longer.

Transformer impedance converts that current demand into voltage drop. If the secondary voltage falls too far, motor torque falls sharply. Induction motor starting torque is approximately related to the square of terminal voltage, so a modest-looking voltage dip can have a much larger effect on acceleration. This is why an installation can appear acceptable on paper but struggle when the motor starts under real process load.

A useful early question is not “What size transformer matches the motor kW?” It is “What voltage will remain at the motor terminals during the worst credible starting condition?”

What a 3 phase transformer must handle during a start

A 3 phase transformer serving motors must satisfy two conditions at once. It must carry the continuous plant load without excessive temperature rise, and it must have enough short-duration voltage stiffness to support motor acceleration. These are related, but they are not the same design check.

Continuous loading is usually evaluated from the combined running demand of motors, auxiliary equipment, lighting, controls, and any expected future load. Starting performance depends on a different set of inputs:

• Motor rated kW or hp, rated voltage, efficiency, and power factor.
• Locked-rotor current or the manufacturer's starting-current data.
• Starting method: DOL, star-delta, autotransformer starter, soft starter, or variable-frequency drive.
• Load inertia and the expected acceleration time.
• The transformer impedance and its voltage regulation characteristics.
• Source strength upstream of the transformer, including cable length and utility or generator impedance.
• Other motors or sensitive loads operating on the same secondary bus.

Do not treat the transformer as an isolated component. The actual voltage dip is created by the full supply path: upstream network, transformer, busbar, feeder cable, starter, and motor leads. A transformer can be correctly selected while an undersized or excessively long secondary cable still prevents a satisfactory start.

As a quick engineering principle, a larger kVA rating and a lower impedance generally reduce starting voltage drop, but neither should be selected blindly. Lower impedance raises available fault current, which affects switchgear ratings, protective-device coordination, arc-flash calculations, and mechanical stress during faults. The final decision should consider the whole protection and distribution design.

Choose the starting method before finalizing capacity

The starting method often has more influence on transformer sizing than a small change in motor rating. DOL starting is straightforward and can be reliable for smaller motors or stiff electrical systems, but it produces the greatest line-current demand. It is often the point where a marginal transformer selection becomes visible.

Star-delta starting reduces line current during the initial stage, but it also reduces available motor torque. It is unsuitable where the driven load needs high breakaway torque. Autotransformer starters can provide a better current-torque compromise in some applications, although the starting sequence and transition must be assessed carefully.

Soft starters reduce current by controlling applied voltage, but reduced voltage also means reduced starting torque. They can work very well for centrifugal pumps and fans, where torque demand rises with speed, yet may be a poor fit for high-inertia or constant-torque applications unless the settings and acceleration profile are properly engineered.

A variable-frequency drive changes the situation further. By controlling frequency and voltage together, it can provide controlled acceleration with considerably lower supply inrush than a DOL start. However, a VFD is not simply a transformer-sizing shortcut. Input harmonics, drive duty, cable length, motor insulation requirements, and power quality still need review. Where drives are used extensively, specify a transformer that is appropriate for the harmonic profile rather than relying only on nominal kVA.

Direct answer: select transformer capacity from the expected continuous demand, then verify that transformer impedance, source impedance, cable voltage drop, and the selected starter keep motor terminal voltage within the motor and process requirements during the longest or largest start. A running-load calculation alone is not enough.

Assess the worst start, not the average one

Many systems work during a no-load commissioning test and fail later under production conditions. The correct design case is normally the least favorable realistic combination: highest mechanical load, lowest incoming supply voltage, maximum feeder length, and other normal loads already operating.

Consider a pump station with several motors. If the process logic starts one large pump after smaller pumps are already running, the transformer does not see only the large motor's starting kVA. It sees the running load plus the motor-starting demand. If two large motors can start close together, evaluate the sequence explicitly. A control interlock that forces staggered starting may be more cost-effective than increasing transformer size, provided the process can tolerate the delay.

Generator-backed systems require extra care. A generator's transient voltage response can be the limiting factor even where the transformer itself is generously sized. The same applies to weak utility connections or remote substations with significant upstream impedance. Ask for available fault level or source impedance at the point of connection; it gives a much clearer picture of source stiffness than nominal supply voltage alone.

Acceleration time changes the thermal picture

A very brief inrush event and a long, stalled start should not be treated as equivalent. A motor that reaches speed in a few seconds may create an acceptable short-duration disturbance. A motor that takes much longer because of inertia, high starting torque, low voltage, or process resistance can impose repeated heating on both motor and transformer.

Repeated starts matter too. A transformer may tolerate an occasional heavy start but have little thermal margin when a duty cycle calls for frequent starts. This is common in pumping, conveying, batching, crushing, and refrigeration processes. Confirm the required starts per hour, operating ambient temperature, and whether the transformer will already be heavily loaded before the start occurs.

Impedance is a specification item, not fine print

Transformer impedance is often overlooked because it is printed as a percentage rather than presented as a major selection feature. For motor applications, it deserves direct attention. Higher impedance generally limits fault current but produces more voltage drop when a large starting current flows. Lower impedance improves voltage support but can increase downstream fault duty.

There is no universal “best” impedance value. The appropriate value depends on motor-start performance, utility strength, switchgear withstand capability, cable layout, protection settings, and the project's fault-level limits. Asking a manufacturer for a standard distribution transformer without providing motor-start data can lead to a technically valid product that is poorly matched to the application.

The practical specification should state the largest motor, starting method, locked-rotor current or equivalent data, simultaneous running load, permitted voltage dip where known, operating duty, and preferred impedance range or performance requirement. A voltage-drop study is more defensible than prescribing a low impedance merely because the site has starting problems.

Do not confuse a motor-duty transformer with a solar step-up unit

Some sites combine production loads with renewable generation, and that can blur equipment requirements. A photovoltaic step-up transformer is designed primarily to raise inverter output voltage to the grid connection level. Its selection centers on inverter voltage, grid voltage, harmonic conditions, vector group, outdoor environment, and the operating profile of the solar plant.

For example, the Step-Up Transformer for Photovoltaic Power Stations is offered for three-phase photovoltaic applications in the 500 kVA to 5000 kVA range, with low-voltage options including 0.315 kV, 0.4 kV, and 0.69 kV, and high-voltage options including 10 kV, 20 kV, and 35 kV. It may be relevant where an industrial site needs a separate transformer for PV grid connection, particularly when copper windings, outdoor installation, IEC 60076 compliance, and harmonic resistance are part of the project specification.

It should not automatically be assumed to be the right transformer for a large motor bus. Inverter export duty and motor-start duty create different electrical stresses. When solar generation and motors share a facility, determine whether the motor loads are supplied from a dedicated service transformer, a separate auxiliary transformer, or a common bus with studied operating modes. The answer affects protection, reverse-power conditions, voltage regulation, and the transformer duty specification.

A selection workflow that avoids late surprises

Start by collecting manufacturer data rather than relying on rule-of-thumb multipliers. Record motor voltage, rated current, starting current, power factor, inertia or acceleration time, driven-load torque characteristic, start frequency, and starter type. Identify all motors that may run or start simultaneously.

Next, establish the supply boundary conditions. Confirm nominal voltage and allowable variation, upstream source capacity or fault level, transformer primary voltage, intended secondary voltage, transformer impedance, secondary feeder lengths, and switchgear ratings. The cable route is not a minor detail; a long feeder can consume much of the voltage margin that appeared available at the transformer terminals.

Then model the normal and adverse operating cases. At a minimum, check the largest motor starting with normal background load and the most demanding permitted start sequence. Include low supply-voltage conditions where the local utility specification or site data indicates they are possible. Review terminal voltage, acceleration capability, transformer loading, and protection performance together.

Only after this review should the transformer rating be finalized. Where the calculation shows a borderline result, there are several remedies: increase transformer kVA, adjust impedance within acceptable fault-duty limits, use a reduced-current starter or VFD, stagger starts, shorten or enlarge feeder cables, or separate sensitive loads from the motor bus. The best answer depends on the plant's operating priorities.

Common selection mistakes

Using total running kW as the transformer size. This ignores starting current, diversity assumptions, power factor, losses, and future load. It can leave little voltage margin for the first large motor start.

Assuming every soft starter solves voltage dip. A soft starter reduces current only by reducing voltage, and motor torque falls at the same time. Check whether the machine can accelerate at the selected current limit.

Specifying a low-impedance transformer without checking switchgear. Better starting voltage may come with higher available fault current. Protection equipment must remain properly rated and coordinated.

Ignoring the process sequence. The electrical design and the control philosophy should agree. A staged-start sequence may avoid an unnecessary transformer upgrade.

Using future expansion as a vague allowance. List the actual expected future motors and their starting methods. A planned 75 kW VFD-driven motor and a 75 kW DOL crusher do not create the same requirement.

What to send with a transformer enquiry

A useful enquiry package is short but specific: primary and secondary voltages, frequency, required continuous kVA, largest motor details, starter type, starting current, acceleration time, number of starts, simultaneous-load assumptions, source data, feeder lengths, installation environment, cooling preference, vector-group requirement, and applicable standards. Also state whether the transformer is expected to support harmonic-producing loads, generators, or photovoltaic equipment.

Jinshida Electric Power Technology Co., Ltd. supports power transmission and distribution projects through transformer development, manufacturing, and application support. In practice, the most valuable part of supplier engagement is not a quick catalogue selection. It is confirming that the winding design, impedance, cooling arrangement, insulation system, losses, and protection assumptions match the actual operating duty.

Make the final decision on voltage performance

The right 3 phase transformer for motor starting loads is the one that supports dependable acceleration at the worst expected operating point while remaining thermally sound and compatible with the facility's protection system. Nominal kVA starts the conversation, but it cannot finish it.

Before releasing a purchase order, verify the motor-start calculation against the selected transformer impedance, source conditions, cable drop, start sequence, and future expansion plan. That extra review is usually far less costly than solving low-voltage starts, overheated equipment, or production interruptions after commissioning.

Questions often raised during evaluation

Can a larger transformer always solve motor-starting problems?

Not always. It can reduce transformer-related voltage drop, but a weak upstream source, long feeder cable, inadequate starter setting, or excessive mechanical load may still prevent proper acceleration.

Should a transformer be sized from motor kW or starting kVA?

Use both. Continuous kW and power factor establish normal loading; starting kVA and system impedance establish voltage performance during acceleration.

Is DOL starting unsuitable for a 3 phase transformer?

No. DOL starting is common and can be appropriate where the system is stiff enough and the driven load permits it. It simply needs a more careful voltage-drop and protection review than reduced-current starting.

When should a VFD be considered?

Consider it when controlled acceleration, process control, lower line-current demand, or reduced mechanical stress has value. Confirm harmonic requirements and motor compatibility before treating it as the default solution.
