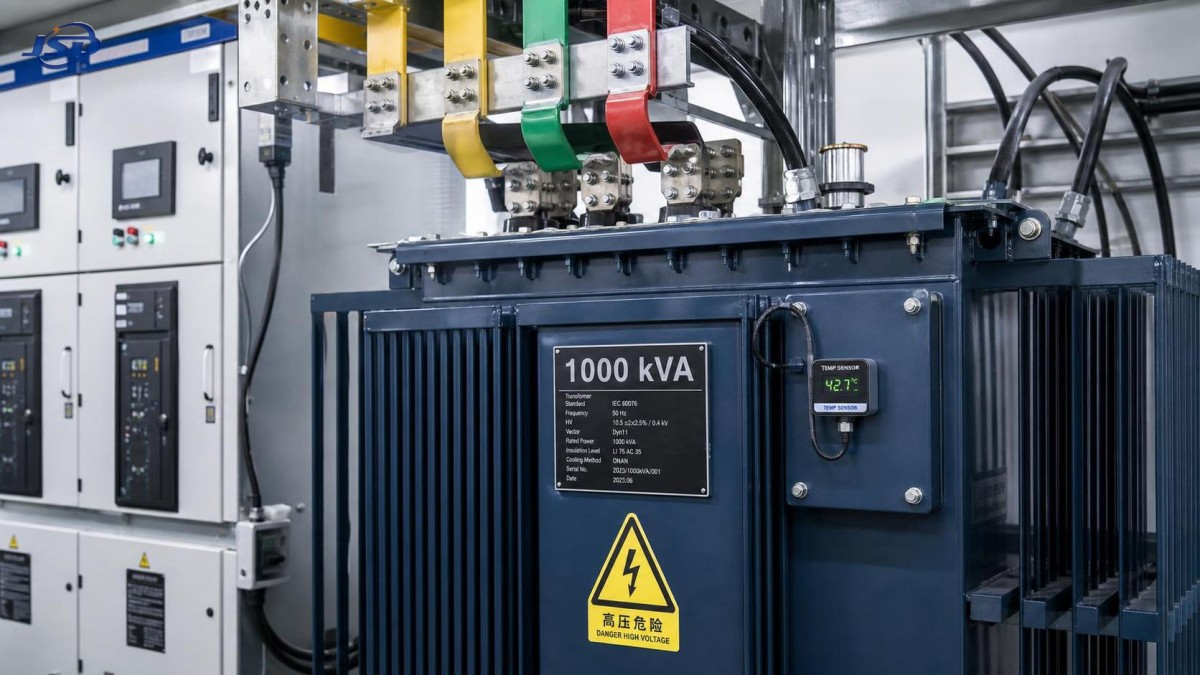

How to size a 1000 kVA transformer for continuous industrial loads

Start with the operating profile, not the 1000 kVA nameplate

A 1000 kVA transformer is often treated as a straightforward capacity choice: add the connected motor, heating, process, lighting, and auxiliary loads, then select a transformer with a matching or slightly larger rating. For continuous industrial duty, that approach is incomplete and can create either an expensive oversize installation or a transformer that runs hot, ages early, and leaves little room for operational change.

The technical question is not simply whether the facility has 1000 kVA of equipment connected. It is whether its expected load profile, power quality, environmental conditions, and future operating plan allow a 1000 kVA transformer to carry the required demand reliably over its intended service life.

That distinction matters in plants with 24-hour production, high motor concentration, variable-frequency drives (VFDs), rectifiers, welding systems, or seasonal process loads. A transformer can appear acceptable in a one-time load calculation but still face excessive thermal stress when the site settles into continuous operation. Technical evaluators should therefore treat transformer sizing as a system decision involving load behavior, protection coordination, site constraints, and maintainability.

Convert the load list into a credible demand model

The starting point is a load schedule, but the connected kW total is only raw material. Each significant load should be classified by operating pattern: continuous, intermittent, cyclic, standby, or future. A compressor running two shifts, a furnace held at temperature, and a large motor that starts only a few times per day should not be evaluated with the same demand assumption.

For three-phase systems, apparent power is determined from real power and power factor:

kVA = kW / power factor

If an industrial facility has a measured or forecast operating demand of 720 kW at a 0.90 power factor, the basic apparent demand is 800 kVA. On paper, that leaves 200 kVA below a 1000 kVA rating. Whether that margin is sufficient depends on conditions that the basic formula does not show: how long the 800 kVA condition lasts, whether the power factor declines at partial process loads, whether non-linear loads increase losses, and whether the transformer is installed in an environment that limits cooling.

Where historical electrical data exists, interval data is more valuable than a design estimate. Ideally, evaluators should review at least 15-minute demand data across representative production periods, including the highest seasonal ambient conditions and operating modes. The useful result is not just the single peak. It is a view of base load, normal peak, peak duration, ramp rate, and coincidence of major equipment.

• Continuous demand: Identify loads expected to run for several hours or around the clock. This is the core thermal duty.
• Coincident demand: Determine which loads can operate at the same time in real production, not merely on a theoretical equipment list.
• Starting and inrush events: Motor starts and transformer energization may not dictate steady-state kVA, but they affect voltage dip and protection design.
• Contingency duty: Consider whether the unit must support another feeder, a bypassed transformer, or emergency production operation.
• Expansion load: Separate committed expansion from speculative growth. Both matter, but they should not receive the same design weight.

A common failure is to apply a generic diversity factor to a process plant without testing it against the production sequence. Diversity is valid only when the operating logic proves that loads will not coincide. In a plant where multiple production lines can run simultaneously to meet demand, a generous diversity assumption can turn an apparently conservative transformer selection into a constrained installation from the first year.

What continuous loading actually means for transformer capacity

A nameplate rating is tied to defined design conditions, including temperature-rise assumptions and cooling conditions. It should not be read as an unconditional promise that the transformer can operate at exactly that load under every ambient temperature, enclosure arrangement, harmonic profile, and maintenance condition.

For a conventional 1000 kVA transformer, sustained operation close to full rating may be entirely appropriate when the manufacturer’s rating basis matches the site conditions. But technical evaluators should resist a simplistic rule that a transformer must always be operated at 70% or 80% of nameplate. That rule can lead to unnecessarily high capital cost, increased no-load losses, larger switchgear, and a less efficient overall installation at normal load.

The better question is: what load can this specific design carry continuously at the actual site, while maintaining an acceptable thermal margin and insulation life? The answer requires the supplier’s guaranteed loss data, temperature-rise design, cooling method, ambient assumptions, and applicable standard. Requirements may be based on IEC 60076 or the IEEE C57 family, among other applicable local specifications; the exact edition, grid code, and customer requirements should be confirmed for the project.

Continuous loading near nameplate deserves closer scrutiny when any of the following conditions apply:

• High ambient temperature, solar exposure, restricted ventilation, or an enclosed transformer room.
• High altitude, where reduced air density can affect cooling performance.
• Significant harmonic current from VFDs, UPS systems, arc furnaces, battery chargers, or power-electronic production equipment.
• Frequent overload cycles, repeated starts of large motors, or highly fluctuating process demand.
• A need for N-1 operating capability, where one transformer may temporarily carry load normally shared by another.
• Limited maintenance access that could delay oil testing, cooling-system inspection, or fault investigation.

In these cases, the correct response is not automatically to move to the next standard size. It may be to specify a harmonic-capable design, revise load sequencing, improve ventilation, install power-factor correction or harmonic mitigation, or divide critical loads between transformers. Capacity is only one part of the thermal and reliability solution.

Harmonics can consume the margin that the kVA calculation appears to provide

Non-linear loads have changed the sizing conversation in many industrial facilities. A VFD does not simply draw a clean sinusoidal current at the calculated kVA. Harmonic currents can increase eddy-current and stray losses in transformer windings and structural parts, creating additional heating that is not visible in a basic kW-to-kVA conversion.

The right evaluation starts with the load type and expected harmonic spectrum. Total harmonic current distortion is useful, but it is not the sole criterion because different harmonic orders affect transformer losses differently. Suppliers may offer a derated standard unit or a transformer specifically designed for harmonic duty. The required approach should be based on measured data, an engineering study, or a defensible forecast of the installed drives and converters.

It is also important to assess the entire electrical path. A transformer selected for non-linear loads may still be paired with undersized neutral conductors, unsuitable switchgear ratings, inadequate filtering, or protective settings that do not reflect the actual waveform. For installations with substantial power electronics, a power-quality review before procurement is usually less costly than correcting overheating or nuisance tripping after commissioning.

Check voltage, impedance, and fault duty alongside kVA

Two transformers with the same 1000 kVA rating can behave very differently in an industrial distribution system. Primary and secondary voltages must match the utility or plant distribution architecture, but voltage selection is only the beginning. Impedance has direct consequences for fault current, voltage regulation, parallel operation, and motor-start performance.

Higher transformer impedance generally limits available secondary fault current, which can simplify some equipment duty requirements. However, it can also produce a larger voltage drop during large motor starts or rapid load changes. Lower impedance can improve voltage support but may increase fault duty beyond the ratings of downstream breakers, panels, cables, or busway. The correct value is a coordination decision, not a catalog default.

For a 1000 kVA three-phase transformer, the secondary full-load current should also be calculated from the actual secondary voltage:

Full-load current = 1000,000 / (1.732 × secondary line voltage)

At 480 V, the result is approximately 1,203 A. That figure has practical consequences. It affects the size and arrangement of secondary bus, cable sets, main breakers, metering equipment, and available panel capacity. A transformer selection cannot be separated from the physical distribution equipment that must carry and interrupt the resulting current.

Short-circuit calculations and protection coordination should be completed before finalizing the impedance and protective device arrangement. The review should include utility source data, generator contribution where present, motor contribution, downstream equipment interrupting ratings, grounding method, and selective coordination requirements for critical processes.

Installation environment may decide between a room, a pad, and a different configuration

The transformer’s location changes the specification. Indoor dry-type and liquid-filled installations each have distinct requirements for clearance, fire protection, ventilation, noise, inspection access, and local code compliance. Outdoor units must address corrosion exposure, flooding risk, security, drainage, sunlight, seismic conditions where relevant, and the practicality of cable termination and maintenance.

For medium-sized factories, logistics parks, renewable interconnection points, and facilities needing compact outdoor distribution, a pad-mounted configuration may be evaluated as part of the broader system architecture. For example, a American-Type Pad-Mounted Substation is available in configurations intended for applications such as factory distribution, photovoltaic step-up service, and critical commercial infrastructure. Its relevance to a 1000 kVA decision is not that a 750 kVA unit substitutes for the required capacity, but that it illustrates the need to assess enclosure protection, voltage range, network arrangement, and service environment together rather than treating the transformer as an isolated component.

Published product claims, such as efficiency levels, ingress protection, oil type, or standards compliance, should be translated into project-specific submittal requirements. A statement that an enclosure is IP54 or NEMA 3R, for example, does not eliminate the need to assess the actual site exposure, ventilation path, flood elevation, and access control. Likewise, a claimed standard should be verified against the required test reports, nameplate data, and the applicable jurisdiction before acceptance.

Plan the margin around known growth, not around uncertainty alone

Future capacity is a legitimate reason to select a 1000 kVA transformer even when current measured demand is lower. The problem arises when expansion is treated as a vague justification for excess capacity without examining its probability, timing, and load characteristics.

A useful planning exercise separates future loads into three categories: contracted or approved additions, likely operational additions, and uncommitted possibilities. Approved loads should be included in the base case. Likely additions can justify a defined margin or phased distribution provision. Uncommitted possibilities are better handled through space reservations, feeder stub-outs, sectionalized bus, or a planned second transformer position than through indefinite oversizing.

Evaluators should also account for the cost of transformer losses over the expected operating profile. An oversized unit can reduce load losses at high demand but may impose higher no-load losses for every energized hour. The economic decision depends on load factor, energy price, operating hours, loss guarantees, and expected asset life. Suppliers should provide guaranteed no-load and load-loss values, with the test basis clearly stated, so alternatives can be compared on a total-cost basis rather than purchase price alone.

Procurement documents should ask for evidence, not broad assurances

A technically sound request for quotation defines the electrical and environmental duty clearly enough that bids can be compared. At minimum, it should state the rated kVA, primary and secondary voltage, frequency, vector group or winding connection where applicable, impedance target or range, cooling type, tap requirements, insulation and temperature-rise requirements, site ambient conditions, altitude, enclosure or installation conditions, harmonic duty, required accessories, and applicable standards.

For industrial projects, it is also reasonable to request routine test documentation, guaranteed losses, outline drawings, terminal arrangement, sound data where relevant, protection and monitoring options, transport limits, and manufacturing lead time. When the transformer serves a critical process, the purchaser should clarify spare-parts expectations, warranty scope, response arrangements, and the availability of local commissioning support.

Quality review should look beyond certificates. ISO-based quality systems and product certifications can be useful indicators, but they do not replace review of the actual design, test records, material traceability, and factory inspection process for the ordered unit. For higher-risk projects, a witness test or third-party inspection may be justified, particularly where replacement lead time would expose production to a lengthy outage.

A practical decision rule for the 1000 kVA option

A 1000 kVA transformer is generally a credible candidate when the validated continuous demand, adjusted for actual power factor and site conditions, leaves sufficient thermal and operational margin; when harmonic losses have been addressed; when impedance supports both motor performance and equipment fault-duty limits; and when future growth is real enough to warrant the installed capacity.

It is not a sound choice merely because the connected load total is near 1000 kVA, because a competitor’s project used that rating, or because it seems safer to buy the largest unit available within a budget bracket. Conversely, it should not be rejected simply because normal load is below nameplate. The decision depends on the demand curve and the constraints surrounding it.

Before issuing a purchase order, the strongest final check is a short design review that places the load study, harmonic assessment, short-circuit calculation, protection coordination study, site environmental data, and supplier submittal on the same table. When those inputs agree, the transformer rating becomes a defensible engineering decision rather than a number chosen for comfort.
