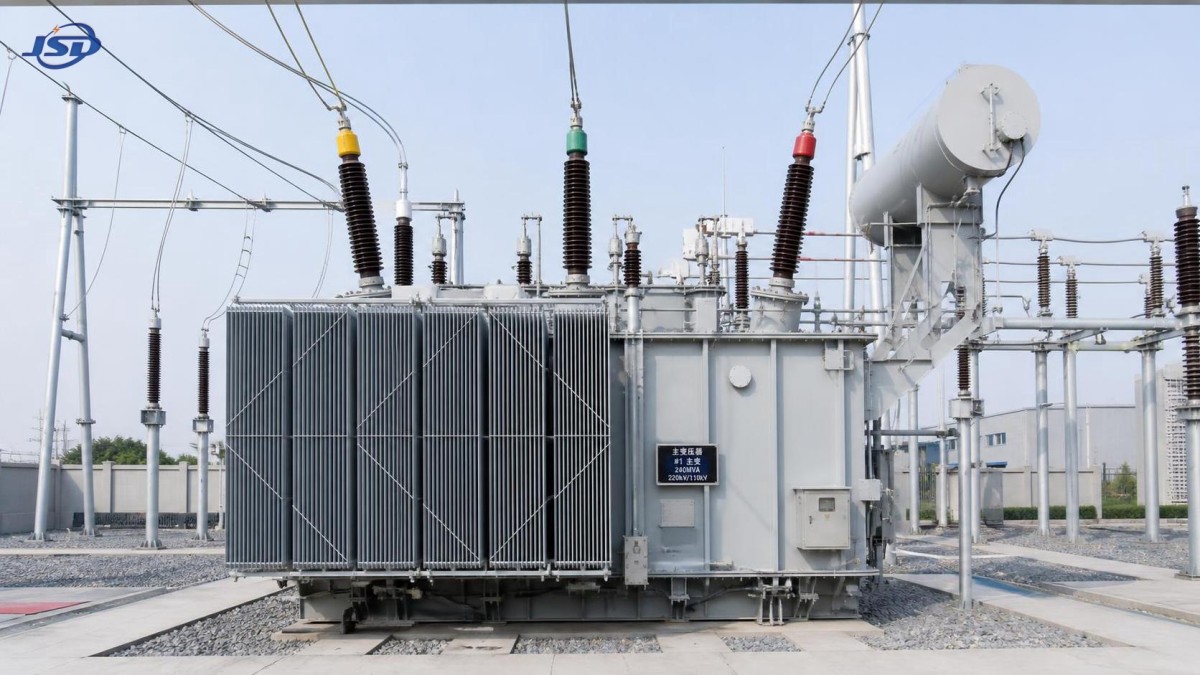

How Power Transformer Ratings Influence Capacity, Energy Losses, and Grid Reliability

Power transformer ratings directly shape system capacity, operating efficiency, and long-term grid reliability. Understanding how MVA capacity, voltage class, impedance, insulation level, and loss performance interact is essential when assessing equipment for utility, industrial, renewable-energy, and infrastructure applications. A rating plate is not merely a list of procurement specifications: it defines the operating envelope within which a transformer can deliver dependable service without excessive losses, overheating, voltage instability, or unacceptable fault-duty consequences.

The difficulty is that ratings cannot be assessed independently. A transformer with sufficient nominal capacity may still be unsuitable if its impedance is incompatible with the network fault level, if its cooling rating does not match the ambient conditions, or if its insulation coordination is inadequate for the actual switching and lightning exposure. Sound evaluation therefore begins with the system rather than the transformer alone.

Capacity rating is a thermal limit, not a forecast of demand

The rated power of a power transformer, normally expressed in kVA or MVA, is the apparent power it can continuously transfer under specified conditions. The rating is determined primarily by permissible winding and oil temperature rise, insulation thermal capability, cooling arrangement, ambient temperature assumptions, and the manufacturer’s declared loading conditions.

For a three-phase transformer, rated current follows directly from the rated apparent power:

I = S / (√3 × V)

where S is three-phase capacity in VA and V is line-to-line voltage in V. This relationship is basic, but it is frequently overlooked when nominal MVA is used as a shortcut for actual load capability. A higher voltage winding carries less current for the same MVA, while the low-voltage side may require very large conductors, bushings, connections, and switchgear ratings. Capacity decisions must therefore be checked on both sides of the transformer.

Continuous loading should not be confused with short-duration overload capability. Some designs can carry loads above nameplate rating for defined periods, especially when prior loading has been low and cooling margin is available. However, overload assessment requires thermal modelling, not a general assumption that “larger is safer.” Repeated high-temperature operation accelerates insulation ageing. Since paper insulation condition is central to transformer life, an apparent capacity margin can be consumed quickly if hotspot temperature is routinely excessive.

Oversizing also has consequences. A lightly loaded unit may have lower load losses, but its no-load losses remain energized around the clock. The best capacity is not necessarily the maximum capacity that can be installed; it is the capacity that satisfies forecast demand, contingency requirements, seasonal conditions, load growth uncertainty, and lifecycle energy economics.

Voltage ratings establish the electrical interface

High-voltage and low-voltage ratings define more than the transformation ratio. They determine clearances, bushing selection, winding insulation design, tap range, cable interface requirements, and compatibility with the wider network. A transformer specified for 110/33 kV, for example, must be assessed against the actual highest system voltage rather than only the nominal operating voltage.

IEC practice distinguishes nominal voltage from highest voltage for equipment. This distinction matters because insulation withstand requirements, equipment clearances, and test levels are related to the system’s highest voltage. A network called “33 kV” may require equipment designed for a higher maximum voltage class depending on the system standard and operating practice.

Voltage regulation is another practical concern. Transformer output voltage changes with load because of winding resistance and reactance. The direction and magnitude of this change depend on load current and power factor. A unit that appears suitable at nominal voltage can create unacceptable low-voltage bus conditions at heavy inductive load if the tap range, impedance, or upstream voltage profile has not been properly modelled.

On-load tap changers are typically used where voltage must be regulated while energized, such as grid supply transformers with significant load variation. Off-circuit tap links are simpler and often adequate for installations where the ratio is adjusted only during planned outages. The evaluation question is not whether an OLTC is technically superior; it is whether the expected variation in source voltage and load voltage requires active regulation, and whether the maintenance regime can support it.

Impedance links voltage performance to fault performance

Percentage impedance, commonly stated as %Z, is one of the most consequential and most misunderstood power transformer ratings. It represents the voltage required to circulate rated current through a short-circuited transformer winding under defined test conditions. In operation, it influences both voltage drop and the current available during a downstream fault.

A lower impedance transformer generally produces lower voltage drop at load, which may appear attractive for voltage-sensitive industrial processes. Yet lower impedance also permits higher short-circuit current. This can increase the interrupting and withstand duty imposed on circuit breakers, busbars, cables, current transformers, and protective devices. Existing switchgear may become inadequate after a transformer replacement even when the transformer’s voltage and MVA ratings are unchanged.

Higher impedance reduces prospective fault current and can help maintain switchgear duty within limits. The trade-off is greater voltage drop and potentially reduced motor starting performance. In networks with large motors, arc furnaces, variable-speed drives, or fluctuating rectifier loads, the correct impedance is usually determined through coordinated load-flow, short-circuit, motor-starting, and harmonic studies rather than a generic utility value.

Parallel operation makes impedance discipline even more important. Transformers operating in parallel should have compatible voltage ratios, vector groups, tap positions, phase displacement, and impedance characteristics. Significant mismatch in per-unit impedance causes unequal load sharing. One transformer can overload while the combined bank appears to have unused capacity. Matching MVA ratings alone does not solve the problem.

Loss ratings determine operating cost and thermal margin

Transformer losses are commonly separated into no-load loss and load loss. No-load loss, often referred to as core loss, is present whenever the transformer is energized. It is driven by magnetic flux in the core and varies mainly with voltage and frequency. Load loss is produced largely by current flowing through the windings and associated stray losses in structural components; it rises approximately with the square of load current.

This distinction should shape the evaluation method. A unit energized continuously but operating at a modest average load factor may accumulate substantial no-load energy consumption over its service life. A heavily loaded transformer, by contrast, may justify a design with lower load losses even if its core losses are somewhat higher. The annual cost comparison should use the expected load profile, energy price, loss capitalization approach, and likely operating hours—not a simple comparison of efficiency at one arbitrary loading point.

Efficiency is often cited as a percentage, but the result varies with load. The point of maximum efficiency occurs where load loss equals no-load loss, which may not match the project’s normal operating point. More useful questions are: What are the guaranteed losses at the specified reference temperature? Are auxiliary cooling losses included separately? What test method applies? What tolerance is permitted under the governing standard and contract?

IEC 60076 provides the central international framework for power transformer requirements and testing, with relevant parts covering general requirements, temperature rise, insulation levels, short-circuit withstand capability, and other design aspects. It is important to specify the applicable edition, project deviations, and test obligations in the technical schedule. “Compliant with IEC 60076” alone does not define a complete loss, insulation, or test requirement.

Cooling class and temperature rise govern usable capacity in the field

The cooling designation tells the evaluator how heat is removed. For oil-immersed transformers, ONAN denotes oil natural, air natural cooling. Forced cooling stages such as ONAF use fans to increase heat rejection and may permit higher rated capacity. Dry-type designs use air cooling arrangements such as AN or AF depending on natural or forced airflow.

Cooling selection must be aligned with site conditions. High ambient temperature, solar exposure, altitude, restricted ventilation, dust accumulation, salt contamination, and enclosure design can all reduce practical thermal performance. An outdoor transformer installed in a hot, poorly ventilated compound may not achieve the same thermal margin as a unit tested under standard ambient conditions. Likewise, relying on fans for normal continuous operation introduces auxiliary power demand and maintenance dependence. Fan failure alarms, redundant groups, control logic, and emergency loading assumptions should be reviewed as part of the protection philosophy.

Temperature-rise guarantees need careful reading. A transformer can have a stated rated capacity and still require derating under non-standard ambient temperature or elevation. The specification should state the site reference conditions and require the supplier to declare any correction factors. This is particularly relevant in mining, coastal processing facilities, rail infrastructure, and enclosed substations where environmental conditions differ materially from standard assumptions.

Insulation level is about system overvoltages, not only steady-state voltage

Insulation coordination is frequently reduced to a voltage-class selection exercise, but transformer insulation must withstand transient events as well as normal operating voltage. Lightning impulses, switching surges, fault recovery transients, and resonance conditions can stress windings and terminals far beyond steady-state values.

Basic insulation level and switching impulse withstand requirements must be coordinated with arresters, line configuration, cable connections, breaker switching characteristics, and substation layout. A transformer can meet its specified insulation level yet face elevated risk if surge arresters are poorly located, inadequately rated, or disconnected by long lead lengths that add inductive voltage during fast transients.

Internal winding geometry matters as well. Fast-front surges may produce non-uniform voltage distribution across turns near line terminals. This is one reason why transformer design review should consider the application: a cable-fed industrial substation, an overhead-line terminal, and a converter-connected facility can impose different transient conditions even at the same nominal voltage.

Vector group and grounding arrangement affect protection and harmonics

Vector group selection defines winding connection and phase displacement. It affects parallel compatibility, zero-sequence current paths, grounding strategy, harmonic containment, and the operation of protective relays. A delta winding can provide a path for certain triplen harmonic currents and help isolate zero-sequence components between systems. A grounded wye winding can establish a neutral point for earth-fault protection and distribution loads.

These features should be selected as part of the network grounding study, not copied from a previous project. For example, a Dyn11 arrangement is common in many distribution and industrial applications because it provides a neutral on the low-voltage side and a 30-degree phase shift. However, it may not be suitable where an existing parallel bank uses a different displacement or where converter arrangements require a particular phase relationship.

Rectifier and converter loads add another layer of assessment. Harmonic current increases eddy-current and stray losses, potentially creating localized heating that is not represented by fundamental-frequency load current alone. In such cases, the transformer may require a derated capacity, enhanced winding design, electrostatic shielding, phase-shifting connections, or a dedicated harmonic-duty specification.

For industrial DC supply systems, an Isolation and Rectifier Special Transformer illustrates why conventional nameplate comparison is insufficient. Available in 50 kVA to 5000 kVA configurations with 6 kV, 10 kV, 20 kV, or 35 kV high-voltage options, such equipment must be evaluated for the rectifier topology, secondary voltage tolerance, pulse arrangement, harmonic spectrum, expected overload cycle, and isolation requirement. A three-phase Dyn11 or Yyn0 connection may be appropriate in a given installation, but it should follow the system study rather than serve as a default selection.

Short-circuit withstand capability is a reliability requirement

Fault current creates severe electromagnetic forces in transformer windings. The mechanical stress can deform conductors, loosen clamping structures, and compromise insulation even if the fault is cleared within normal protection time. IEC 60076-5 addresses the ability of power transformers to withstand short circuits, but project assessment should also consider the actual network fault level, protection clearing time, reclosing practice, and possible through-fault frequency.

Large industrial sites often underestimate through-fault exposure because their attention is directed to internal transformer protection. Many damaging events originate downstream, such as cable faults, busbar faults, or motor feeder failures. Differential protection may not operate for these external faults, leaving the transformer to carry high current until downstream protection clears. Coordination studies should therefore confirm that the declared short-circuit withstand performance is suitable for the credible duty.

Turning ratings into a defensible specification

A robust technical evaluation starts by translating network studies into transformer requirements. Load-flow analysis defines normal and contingency loading, voltage range, reactive-power conditions, and tap requirements. Short-circuit studies establish impedance targets and equipment duty. Harmonic analysis identifies whether standard loss assumptions remain valid. Insulation coordination defines withstand levels and surge-protection needs. Thermal assessment converts local ambient and cooling constraints into a realistic continuous rating.

The resulting specification should clearly identify rated power by cooling stage, winding voltages and highest equipment voltages, tap range and tap-changer duty, vector group, impedance and tolerance, guaranteed no-load and load losses, temperature-rise limits, insulation levels, short-circuit withstand requirements, terminals, monitoring devices, applicable standards, routine tests, type-test evidence where relevant, and site acceptance expectations.

Factory test documentation deserves the same attention as the design schedule. Routine tests generally verify ratio, winding resistance, impedance, losses, insulation performance, and functional operation as applicable. For critical installations, the evaluator should review not only pass/fail results but also whether measured values align with guaranteed figures and whether any deviation has implications for parallel operation, protection settings, energy cost, or future expansion.

Power transformer ratings become meaningful only when viewed as an integrated system of electrical, thermal, mechanical, and operational limits. Selecting on MVA and voltage alone can deliver equipment that energizes successfully but performs poorly under real load, fault, or environmental conditions. A rating package that is coordinated with studies, standards, protection, and lifecycle duty provides something more valuable than nominal capacity: predictable service over the operating life of the network.
