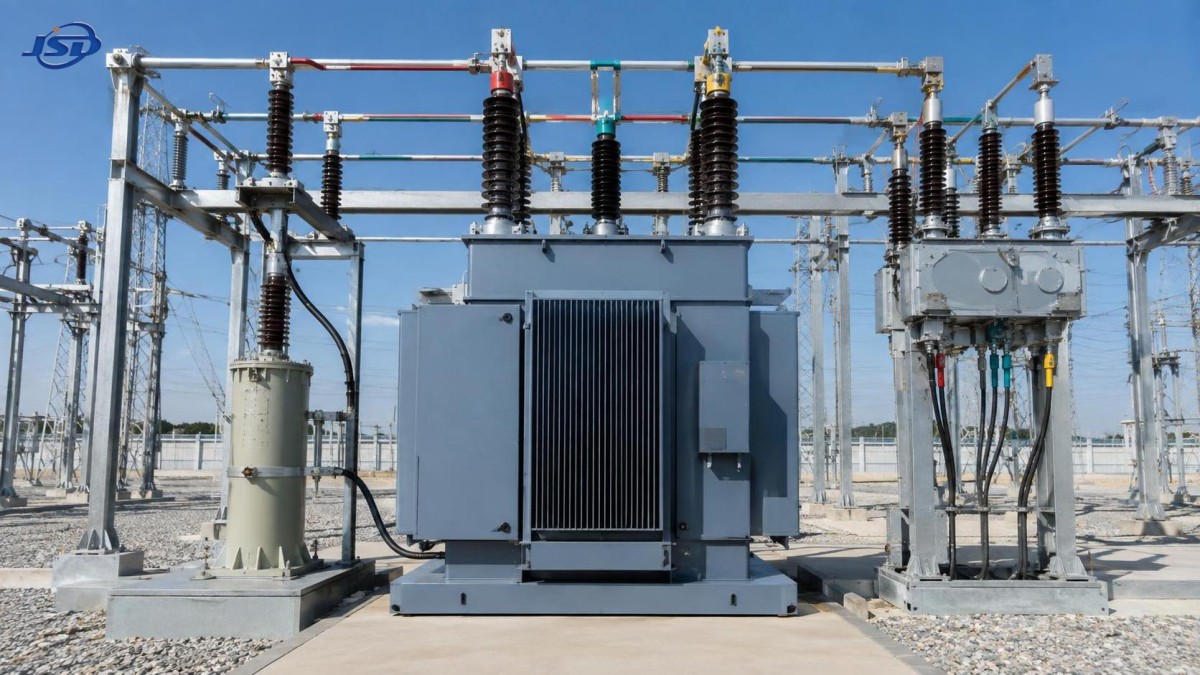

What protection settings work with a substation grounding transformer?

A substation grounding transformer should not be protected with a generic transformer relay template. Its primary purpose is to establish a controlled neutral reference and manage earth-fault current, so the protection philosophy must begin with the grounding method, the neutral grounding resistor or reactor, the connected feeder arrangement, and the available fault current.

The most reliable setting approach is to make the feeder protection clear a ground fault first, while the grounding transformer neutral protection provides sensitive detection, neutral-resistor supervision, and time-delayed backup. Settings that trip the grounding transformer too quickly can unnecessarily remove the system grounding reference. Settings that are too insensitive can leave damaging fault current or a failed neutral grounding path undetected.

Start with the grounding arrangement, not the relay menu

A grounding transformer is commonly installed on an otherwise ungrounded delta system, or on a system where the main power transformer winding does not provide an accessible neutral. Zig-zag and wye-delta grounding transformers are typical arrangements. Their neutral may be solidly grounded, resistance grounded, reactance grounded, or connected through a high-resistance grounding device.

That choice changes the protection settings fundamentally:

• Solidly grounded systems can produce substantial ground-fault current. Protection must coordinate with phase and ground overcurrent relays, breaker interrupting ratings, and transformer thermal limits.
• Low-resistance grounded systems intentionally limit earth-fault current to a defined value while retaining enough current for selective relay operation. Neutral overcurrent protection is usually central to the scheme.
• High-resistance grounded systems limit fault current to a low level, often to reduce equipment damage and permit a controlled response to the first ground fault. Voltage-based detection and grounding-resistor integrity monitoring become more important than instantaneous tripping.
• Resonant or reactance-grounded systems require settings based on the specific neutral network and utility protection philosophy. A simple residual overcurrent approach may not provide adequate sensitivity or selectivity.

The protection study should therefore identify the maximum and minimum single-line-to-ground fault current at each relevant bus and feeder, including expected system operating configurations. A setting based only on the grounding transformer nameplate kVA is incomplete. The transformer thermal rating matters, but the relay must also respond correctly when source impedance, feeder impedance, switching status, or generation configuration changes.

Neutral overcurrent protection is the core function in resistance-grounded systems

For a low-resistance grounded installation, a current transformer on the grounding transformer neutral or on the neutral grounding resistor lead provides the most direct measurement of earth-fault current returning through the grounding path. This element is commonly applied as time-overcurrent ground protection, often identified by ANSI device functions such as 51N, 51G, or 51GS depending on the relay design and measurement method.

The pickup must sit between two boundaries. It must be above normal standing current, transient charging current, CT error, and any expected residual imbalance. At the same time, it must remain below the minimum credible ground-fault current that the scheme is expected to detect. If the pickup is set too close to the resistor’s rated current, weak or remote faults may not operate the relay. If it is set too low, switching events, feeder capacitance, or CT mismatch can create nuisance alarms or trips.

Time delay is equally important. A grounding transformer neutral relay is generally not intended to defeat feeder selectivity. Downstream feeder relays, residual-current relays, or zero-sequence CT protection should normally have sufficient time to isolate the faulted circuit before the grounding transformer backup trip operates. The margin must include relay operating tolerances, breaker clearing time, communication-assisted scheme behavior where used, and CT saturation considerations during severe faults.

An instantaneous neutral overcurrent element, commonly 50N, can be appropriate where fault current is clearly high and a rapid trip is required to protect the grounding transformer or neutral resistor. It should not be enabled simply because the relay offers the function. In a resistance-grounded system with intentionally limited current, a poorly coordinated instantaneous pickup can trip the grounding transformer before the feeder breaker has time to clear a fault.

Voltage-based ground-fault detection is essential where current is deliberately limited

High-resistance grounded systems often cannot rely on conventional overcurrent elements for dependable fault detection. The current may be intentionally too low to provide adequate discrimination, particularly where feeder charging current and system capacitance are significant. In these systems, neutral displacement voltage is commonly monitored using a broken-delta voltage transformer connection, a neutral voltage transformer, or an equivalent relay measurement arrangement.

A 59N or 59G element detects zero-sequence or neutral-to-ground voltage that rises when one phase becomes grounded. Its setting should account for normal voltage unbalance, VT accuracy, ferroresonance risk where relevant, and transient conditions during switching. The key point is that 59N indicates a ground-reference disturbance; it does not by itself identify the faulted feeder.

For this reason, a high-resistance grounding scheme frequently separates alarm and trip decisions. A first ground fault may initiate an audible and remote alarm, record the event, and trigger fault-location procedures rather than immediately opening the source. That operating philosophy is only safe when the system design, maintenance procedures, and applicable electrical rules permit continued operation with one ground fault. A second fault on another phase can create a phase-to-phase fault path and must not be treated as a routine condition.

Grounding resistor monitoring should be treated as an independent protection requirement. A failed-open resistor, disconnected neutral conductor, damaged neutral CT circuit, or incorrect resistor replacement can leave the system without its designed fault-current limitation. Depending on the equipment design, supervision may use resistor continuity monitoring, neutral current verification, injection-based monitoring, or a dedicated neutral grounding resistor monitor. An alarm for loss of grounding integrity should be unmistakable and should lead to defined operating action.

Protect the transformer, but do not confuse transformer protection with grounding protection

A substation grounding transformer still needs conventional equipment protection. Phase overcurrent protection, winding temperature supervision, oil level or pressure devices for liquid-filled units, and sudden-pressure or gas-operated protection where applicable may all be part of the design. These functions address internal damage, overload, insulation failure, and mechanical stress. They do not replace a properly engineered earth-fault scheme.

Transformer differential protection, ANSI 87T, may be justified for larger or more critical grounding transformers, particularly where an internal winding fault must be cleared rapidly and CT placement can provide dependable coverage. Its application requires careful consideration of vector group, CT ratios, inrush restraint, external-fault stability, and the unusual current distribution associated with grounding duty. Differential protection is powerful for internal faults, but it is not automatically the best primary detector for downstream feeder-to-ground faults.

Restricted earth-fault protection can provide sensitive coverage of winding-to-earth faults within a defined zone when CT installation and neutral access permit it. This can be valuable where neutral grounding equipment is closely associated with the transformer and an internal earth fault needs faster operation than a delayed backup overcurrent element.

Thermal protection also deserves close attention. A grounding transformer may carry negligible current in normal service but be designed to carry ground-fault current for a limited duration. Its short-time thermal rating, the neutral grounding resistor duty rating, and the relay clearing time must agree. A coordination curve that permits fault current longer than the transformer or resistor withstand period is not a safe setting, even if it appears selective on a time-current plot.

Feeder sensitivity determines whether the grounding transformer can remain in service

The preferred arrangement is usually selective fault isolation: the feeder supplying the fault trips, while the grounding transformer remains connected and continues to provide a stable ground reference for the healthy system. Achieving that outcome depends on how ground faults are measured at the feeder.

Residual current derived from three phase CTs can work well, but measurement accuracy can degrade under high through-fault conditions, CT saturation, unequal CT characteristics, or wiring errors. A core-balance CT around all phase conductors is often more sensitive for low-level earth-fault detection because it directly measures the residual current. The right choice depends on cable arrangement, feeder construction, required sensitivity, and available switchgear geometry.

Directional ground-fault protection may be needed where multiple sources, bus ties, parallel transformers, distributed generation, or multiple grounding points can feed a fault. Without directional supervision, a relay can operate for ground current that originates outside its intended protection zone. The directional polarizing method must suit the grounding arrangement; zero-sequence voltage and zero-sequence current quantities should be verified against the actual system vector relationships rather than assumed from a standard relay template.

Protection coordination should be reviewed under all credible operating states, not only the normal bus configuration. Bus-section breakers, alternate incomers, standby generators, temporary sources, and maintenance switching can alter zero-sequence paths. A setting that is selective with one transformer in service may become blind or over-sensitive when the system is reconfigured.

Temporary and inverter-based supplies require a separate grounding review

Portable power equipment can introduce a hidden protection issue when it is connected to a substation auxiliary system, construction supply, communications load, or temporary maintenance network. A trailer-mounted battery system may provide stable three-phase output, but its inverter fault-current capability and neutral configuration are not necessarily equivalent to a utility transformer source.

For example, the 50kW/100kWh Portable Trailer Energy Storage System provides 400 V AC output through a 50 kW PCS and can be used for temporary or backup power duties. Before connecting an inverter-based source to any circuit associated with a grounding transformer, the installation must establish whether the output neutral is isolated, bonded, impedance-grounded, or intended for a separately derived system. It must also confirm the inverter’s available earth-fault current, protection response time, and whether its controls permit parallel operation with another source.

A conventional 50N or 51N setting may not operate as intended where an inverter limits fault current electronically. Conversely, an inadvertent neutral-to-earth bond at more than one point can create circulating current, false residual-current readings, or a parallel grounding path that defeats the intended resistor-grounded design. Temporary connections should be reviewed with the same discipline applied to permanent source changes.

Settings should be supported by verifiable quality records

A protection setting is only as dependable as the equipment data and installation verification behind it. The setting file should be traceable to the single-line diagram, grounding study, transformer vector group, neutral grounding resistor rating, CT and VT ratios, relay logic version, and breaker trip matrix. If any of those inputs changes, the protection settings require review.

Particular attention should be given to CT polarity and grounding of secondary circuits. Reversed polarity can compromise differential or directional elements. An open CT secondary circuit is hazardous and can also produce misleading relay values. Neutral CT placement must ensure that it measures the intended return path and does not omit a parallel earth connection.

Commissioning should confirm more than relay pickup. Secondary injection can verify element operation, logic, alarms, and trip outputs, while primary injection or functional testing may be necessary to validate the complete measurement path where practical. Testing should demonstrate that feeder protection operates before grounding-transformer backup protection, that resistor-failure alarms are received at the required location, and that lockout logic does not create an unsafe loss of system grounding.

Applicable requirements vary by jurisdiction and installation type, but the engineering basis should align with the governing electrical code, utility requirements, and recognized practices such as the relevant IEEE grounding and protective-relaying guidance. Standards provide a framework; they do not eliminate the need to calculate settings from the actual network.

The practical protection objective

Effective settings for a substation grounding transformer create a deliberate hierarchy: detect abnormal neutral conditions early, isolate the faulted feeder selectively where possible, protect the grounding transformer and resistor within their thermal duty, and retain a valid grounding reference for healthy circuits whenever the operating philosophy allows it.

The most consequential errors are usually not caused by selecting the wrong relay function. They arise from applying correct-looking functions with incomplete system data: assuming a neutral resistor rating is a relay pickup, overlooking feeder capacitance, failing to account for alternative source configurations, or treating an inverter source as though it supplied transformer-like fault current. A documented coordination study, verified CT/VT installation, tested trip sequence, and controlled settings-change process are the safeguards that turn protection functions into a dependable grounding scheme.
