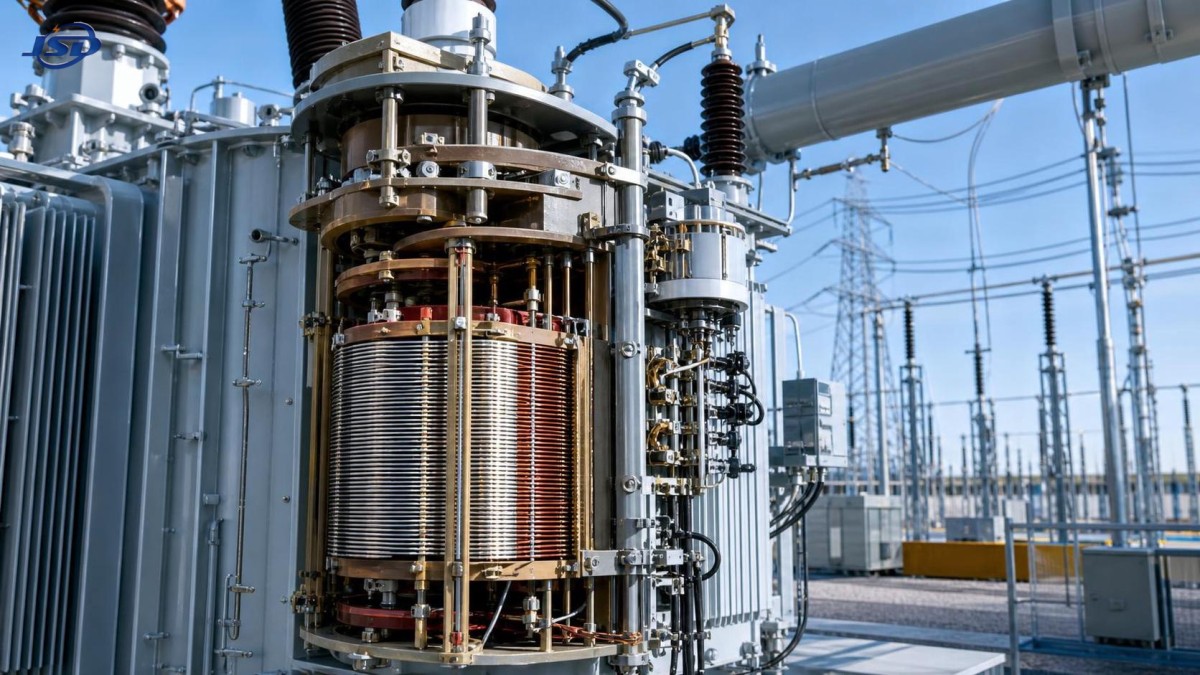

When Does a Transformer with OLTC Make Sense in Voltage Regulation Projects?

In voltage regulation projects, selecting a transformer with OLTC is not always necessary—but in systems facing frequent load changes, long feeder distances, or strict voltage stability requirements, it can be a decisive advantage. For technical evaluators, the question is rarely “Is OLTC useful?” It is more often “Will the added complexity, cost, and maintenance be justified by what the network actually needs?” That distinction matters, especially when the project must balance electrical performance with lifecycle practicality.

Across utility, industrial, renewable, and infrastructure applications, voltage deviations are rarely caused by a single factor. A substation may experience daily demand swings. A plant may bring large motors online in batches. A remote feeder may look acceptable at no-load but drift outside tolerance under peak conditions. In those situations, a fixed-tap transformer may technically function, yet still leave operators constantly compensating elsewhere in the system. That is usually the point where OLTC enters the conversation.

What OLTC really solves in voltage regulation projects

An on-load tap changer allows transformer tap adjustment while energized and under load, which means voltage can be corrected without interrupting service. That sounds straightforward, but for a technical evaluator, the real value lies in what that capability prevents: chronic undervoltage at the end of feeders, overvoltage during light-load periods, process instability in sensitive facilities, and excessive dependence on manual intervention.

A transformer with OLTC makes sense when the system cannot remain within acceptable voltage limits through static design alone. If the network voltage profile changes materially throughout the day or across seasons, fixed taps may only be “right” for part of the operating window. OLTC provides dynamic adaptation.

However, dynamic adaptation is not automatically the best answer. In some projects, capacitor banks, line voltage regulators, reactive power compensation, distributed control strategies, or even conductor upgrades may solve the issue more efficiently. OLTC should be selected because it addresses the root operating behavior of the network—not simply because voltage regulation appears on the specification sheet.

The situations where OLTC tends to be justified

There are several project conditions where the case becomes much stronger.

Frequent and meaningful load variation

If the load profile changes significantly over short intervals, voltage drift is often unavoidable. Industrial parks, steel processing lines, mining operations, railway traction systems, and mixed-use distribution nodes can all experience step changes that a fixed-tap transformer cannot follow. In these cases, OLTC helps maintain a narrower voltage band at the secondary side and reduces the need for operators to accept “good enough” voltage during the most difficult periods.

Long distribution distances

Voltage drop becomes increasingly difficult to ignore when feeders extend over large distances or supply dispersed loads. Even a well-sized transformer may not hold downstream voltage where it needs to be once line impedance and changing load currents are considered. If the project includes a remote industrial area, rural network extension, or infrastructure corridor, a transformer with OLTC can provide a more stable upstream control point.

Strict voltage tolerance requirements

Some loads are more forgiving than others. Lighting networks, basic heating loads, and certain conventional systems may tolerate wider fluctuations. Sensitive electronics, automated production lines, rectifier-fed processes, medical facilities, data-related infrastructure, and precision manufacturing usually cannot. In those environments, short periods of voltage deviation may not cause immediate outages, but they can reduce process quality, increase trips, or place stress on connected equipment.

Grid interconnection with variable power flows

Projects tied to renewable energy or distributed generation often experience changing power direction and fluctuating operating states. Solar and wind integration can alter local voltage behavior in ways that are difficult to manage through static transformer settings. OLTC is particularly relevant where exported power, intermittent generation, and changing local demand create a moving target for voltage control.

When OLTC may be unnecessary—or the wrong first choice

Not every regulation issue should push the specification toward OLTC. In fact, over-specifying a transformer can complicate a project that would otherwise remain simple and reliable.

If the incoming supply is stable, the downstream load is relatively constant, and the voltage variation stays within acceptable limits for the actual process, an off-circuit tap changer may be enough. This is often true in compact industrial systems with predictable operation, or in applications where the process equipment already includes internal voltage tolerance or power conditioning.

OLTC may also be a poor first response if the real problem is elsewhere. A weak feeder, poor reactive power management, undersized conductors, or inappropriate system layout can create symptoms that OLTC only partially masks. Evaluators should be cautious when a regulation problem is being solved at the transformer because it is the easiest visible intervention, rather than because it is the most technically appropriate one.

Another point is maintenance culture. OLTC introduces moving parts, control logic, and service requirements. If the site lacks the capability or discipline to monitor and maintain that equipment properly, the expected regulation benefit can erode over time. In remote or lightly staffed facilities, simplicity may have more value than theoretical control precision.

Key evaluation criteria before specifying a transformer with OLTC

Most technical assessments become clearer when the conversation shifts from “Do we want OLTC?” to “What operating evidence tells us OLTC is necessary?” The following criteria usually provide the best decision framework.

Voltage variation range over time

Look at actual or modeled voltage profiles across different load conditions. If the system remains within required limits without dynamic tap changes, OLTC may add limited value. If voltage repeatedly crosses acceptable thresholds during normal operation, the need becomes easier to justify.

Load profile behavior

Consider not only peak load, but also ramp rate, load diversity, and cyclical switching behavior. A smooth daily variation is easier to manage than abrupt recurring changes. OLTC becomes more useful when the network experiences repeatable operational swings rather than rare exceptional events.

Location of the regulation problem

Determine whether voltage deviation is concentrated at the transformer terminals, along feeders, or at end-use equipment. If the issue is deeply downstream, local correction devices may outperform transformer-based regulation. If the transformer is the most effective control point for the whole system, OLTC becomes more compelling.

Coordination with existing devices

Voltage control should never be evaluated in isolation. Capacitor banks, STATCOMs, AVR schemes, line regulators, inverter controls, and protection settings all influence whether OLTC will improve or complicate system behavior. Poor coordination can lead to excessive tap operations, hunting, or conflicting control responses.

Operational criticality

Ask what happens if voltage strays beyond target. Is the consequence mild inefficiency, or production loss? Is it a comfort issue, or a process safety issue? Projects with high operational sensitivity typically justify investment in tighter control sooner than those with low criticality.

Industrial and rectifier-related applications deserve special attention

In some sectors, voltage regulation is not simply about keeping general distribution voltage neat and compliant. It directly affects conversion equipment, thermal behavior, and process consistency. That is especially true in rectifier applications, electrochemical processes, traction-related systems, and heavy DC loads where transformer performance and downstream equipment behavior are closely linked.

For evaluators working on these kinds of systems, it may be useful to compare standard voltage-regulating transformer options with more application-specific designs such as the Isolation and Rectifier Special Transformer. In projects where isolation, harmonic considerations, rectifier duty, and regulation requirements interact, a purpose-oriented transformer approach can sometimes produce a better overall solution than treating voltage control as a standalone issue.

The trade-off nobody should ignore: regulation benefit vs. tap operation burden

OLTC improves flexibility, but flexibility has a mechanical cost. More frequent tap changes can mean increased wear, stricter maintenance intervals, and higher expectations for control tuning. A specification that pursues extremely tight voltage regulation without considering realistic operating needs may drive excessive tap operations and shorten service intervals unnecessarily.

That is why settings matter as much as hardware. Dead band, time delay, control logic, and coordination with reactive compensation devices all affect whether the tap changer behaves intelligently or nervously. Technical evaluators should review not just whether OLTC is included, but how it will be controlled in actual service.

In practical terms, the best projects are usually not the ones with the most aggressive regulation strategy. They are the ones where the transformer, controls, and network characteristics are aligned well enough that tap changes occur when needed—but not every time the system twitches.

A useful way to think about project fit

If your project has a stable source, short electrical distance, predictable demand, and equipment that tolerates modest variation, OLTC may be unnecessary. If your project faces dynamic loading, voltage-sensitive processes, remote feeders, or variable generation, the argument grows stronger. And if poor voltage control would trigger operational, quality, or reliability consequences, then a transformer with OLTC often moves from “nice to have” to “technically prudent.”

For companies involved in power transmission and distribution equipment, the broader goal is not to apply the same transformer strategy to every job, but to match the equipment design to the network reality. That mindset is increasingly important as grids become more complex and industrial users demand both efficiency and resilience. Manufacturers with strong engineering support, disciplined production, and application-focused design input can add real value here—not by overselling complexity, but by helping evaluators define the right level of control.

Jinshida Electric Power Technology Co., Ltd. works within that context: supporting grid construction, industrial manufacturing, new energy, and infrastructure projects with power equipment solutions shaped by safety, energy efficiency, and dependable operation. For technical teams assessing voltage regulation schemes, that kind of application understanding is often just as important as the transformer specification itself.

Final judgment: when does it make sense?

A transformer with OLTC makes sense when voltage conditions change enough, often enough, and critically enough that static tap selection no longer protects system performance. It is most valuable where operational continuity matters, where feeder conditions are not electrically forgiving, and where the cost of unstable voltage is higher than the cost of added control complexity.

For technical evaluators, the decision should come from measured behavior, system modeling, and a realistic view of maintenance capability. OLTC is not the default answer for every voltage regulation project. But when the network is dynamic and the tolerance for deviation is narrow, it becomes one of the most effective tools available.
