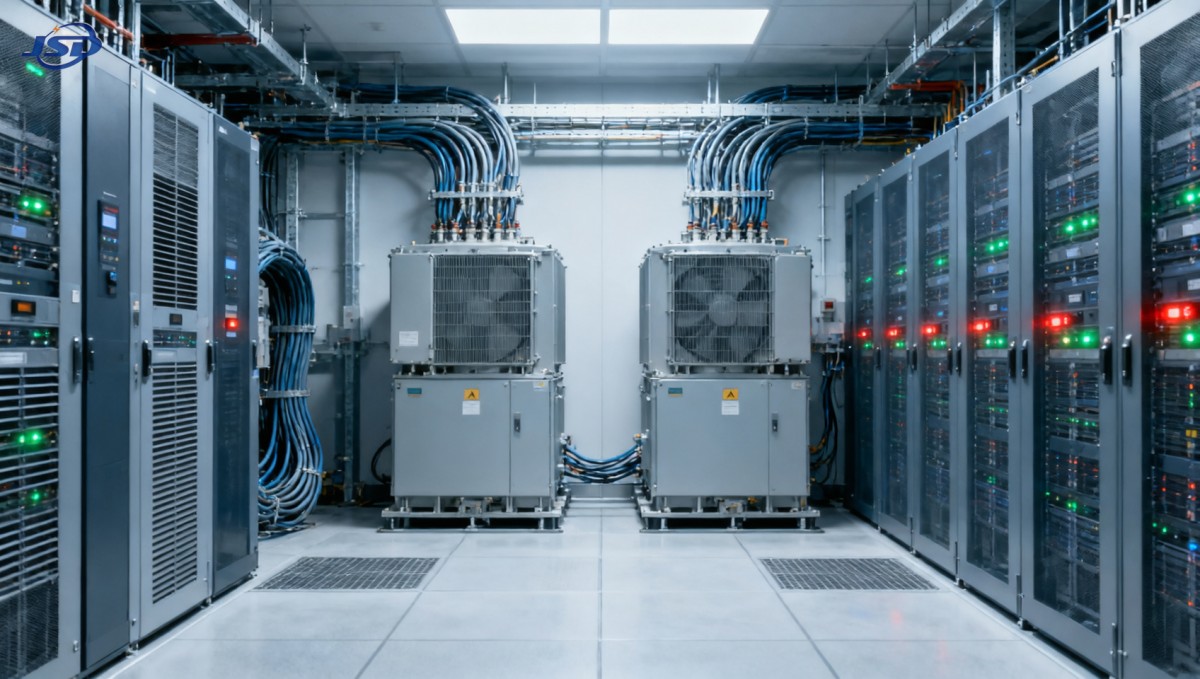

Total Cost of Ownership Factors for Distribution Transformers for Data Centers

The lowest purchase price rarely produces the lowest lifetime cost in a critical facility. For distribution transformers for data centers, the ownership decision affects every hour of operation: electrical losses accumulate continuously, loading conditions change as IT capacity grows, and a transformer fault can turn a relatively small equipment saving into a major business interruption.

A useful procurement view is to separate the visible capital cost from the costs that follow the transformer into service. These include no-load and load losses, cooling and space requirements, installation complexity, inspection and maintenance, replacement lead time, monitoring capability, and the operational consequence of an unplanned outage. The right choice is therefore not simply the highest-efficiency unit or the largest rating. It is the transformer configuration that fits the facility's electrical architecture, expected load profile, resilience target, and expansion plan.

Start with the losses that occur in normal operation

Transformer losses are often the most persistent component of total cost of ownership because they exist for the full energized life of the asset. They are usually considered in two parts.

No-load loss, sometimes called core loss, occurs whenever the transformer is energized, even when the downstream load is light. Data center transformers generally remain live continuously, so this loss deserves more attention than it might receive in a facility with intermittent operating hours. A transformer with lower no-load loss can have a meaningful lifecycle advantage where capacity is installed ahead of demand and remains lightly loaded during early deployment phases.

Load loss is associated with current flowing through the windings and increases as loading rises. It becomes increasingly important in mature halls, high-density deployments, and facilities with a sustained electrical demand. A design that appears economical at a moderate load point may generate substantially more waste heat when operated near its planned utilization level.

Neither number should be reviewed in isolation. Ask suppliers to state the losses at the proposed voltage, frequency, tapping arrangement, cooling class, and reference temperature. Then model them against the expected annual load profile rather than one assumed loading percentage. A site expected to carry a low load for several years needs a different economic balance from one that will ramp quickly after commissioning.

Energy cost evaluation should also include the secondary effects of loss. Every watt dissipated in an indoor electrical room becomes heat that must be managed. In a tightly designed facility, that may affect ventilation, air conditioning capacity, room temperature margins, and equipment spacing. The energy penalty is not limited to the transformer meter reading.

Reliability has a cost even when it is difficult to price

Data center electrical systems are built around continuity. That changes the value of transformer reliability compared with many commercial or industrial installations. A failed unit can require load transfer, constrained operation on the remaining path, temporary generation arrangements, or replacement work within a live critical environment. The cost exposure comes from downtime risk, but also from operational disruption, emergency logistics, and the possibility that a routine repair becomes a high-pressure recovery project.

The specification should therefore look beyond a statement of rated kVA. Review insulation system design, winding construction, enclosure or tank arrangement, cooling equipment where applicable, protective devices, and the suitability of materials for the installation environment. Indoor dry-type and liquid-filled transformers each have valid roles, but the choice should reflect fire strategy, available room volume, ventilation, ambient conditions, access routes, and maintenance philosophy.

For example, a dry-type transformer may simplify certain indoor siting and containment considerations, but its thermal performance depends heavily on room conditions and airflow. A liquid-filled unit can be attractive for some ratings and environments, yet it requires a coordinated approach to containment, fire protection, and inspection. Selecting one type based only on initial quotation price can shift cost and risk into the building design or operating budget.

Redundancy must be assessed at the system level, not assigned to a transformer nameplate. Two transformers do not automatically create a resilient arrangement. Their capacity, protection coordination, bus-tie strategy, physical separation, common-cause exposure, and ability to carry transferred load all determine whether the design can tolerate a credible fault or maintenance event. A lower-cost arrangement that cannot safely sustain the required load after one unit is unavailable may not meet the intended availability objective.

Right-sizing is more valuable than simply oversizing

Oversizing is a common response to uncertainty. It can provide room for growth, but it also raises purchase cost, increases no-load losses, consumes floor area, and may complicate upstream and downstream coordination. A transformer that operates far below its intended loading for most of its life is not automatically a prudent investment.

Undersizing creates a different problem. Persistent high temperature, limited overload margin, and restricted expansion options can shorten useful life or force an early replacement. In critical power systems, the relevant question is not “What is the current load?” It is “What load must this transformer support in normal operation, during a transfer, after an adjacent unit is unavailable, and at the next defined expansion stage?”

A staged capacity plan usually gives a better answer than a large initial allowance. It identifies the first operational phase, the trigger for adding capacity, cable and switchgear provisions for that addition, and the loading target during both normal and contingency conditions. This approach can avoid paying for energized but underused capacity while preserving a practical route for growth.

Harmonic content also needs to be part of sizing. UPS systems, power supplies, variable-speed equipment, and other non-linear loads can influence transformer heating and losses. Modern equipment may include mitigation measures, but the electrical design still needs a clear harmonic assessment. A transformer selected from fundamental-load demand alone may have inadequate thermal margin for the real waveform it will see.

Installation conditions can overturn an otherwise good quotation

The transformer quote is only one line in the installed-cost picture. Transport limits, lifting points, delivery route dimensions, foundation or plinth requirements, cable termination access, fire separation, ventilation, acoustic treatment, and commissioning tests can materially affect the delivered project cost.

For indoor units, confirm whether the electrical room can handle the heat output and whether air pathways will remain clear after cable trays, barriers, and protection equipment are installed. For outdoor equipment, consider corrosion exposure, ambient temperature range, water ingress protection, access for maintenance, and the practical work needed to replace accessories. Noise should be reviewed early where transformers are near offices, neighboring properties, or occupied technical spaces; retrofitting acoustic controls after construction is usually less efficient than incorporating them into the layout.

The same discipline applies to interface responsibility. A supplier may provide the transformer, while another party supplies protection relays, monitoring gateways, civil works, cable terminations, or fire systems. The lowest component price can become expensive when interfaces are poorly defined. Procurement documents should clearly assign design inputs, test responsibilities, drawings, protection data, installation boundaries, and commissioning support.

Maintenance cost is mostly determined before commissioning

A transformer does not need frequent intervention to deserve a maintenance plan. The important issue is whether its condition can be assessed without creating avoidable risk or outage time. Accessible terminals, clearly labeled devices, robust documentation, available test points, and compatible monitoring interfaces make routine work faster and more reliable.

For liquid-filled transformers, the maintenance plan may include fluid condition assessment, sealing checks, and attention to cooling and protective components. For dry-type units, inspections often focus on cleanliness, ventilation paths, connections, signs of tracking, and thermal condition. The exact program depends on design and site conditions, but the commercial point is consistent: plan the labor, access, shutdown windows, and spare parts before award, rather than treating maintenance as a future facilities issue.

Condition monitoring can support a lower-risk operating model when it is selected for a defined purpose. Temperature indications, alarms, load information, and remote status signals are useful only when they connect to a response process. Avoid buying a long list of sensors without deciding who receives alarms, what thresholds require action, and how data will be integrated with the facility's management platform.

Procure for recovery time, not just expected service life

Transformers are long-life assets, but a long design life does not remove the need for a recovery plan. Replacement lead time, transport arrangements, compatible spare components, approved drawings, and access to technical support affect the duration and cost of an unexpected event. This is especially important for custom voltage ratios, non-standard impedance values, unusual dimensions, or specialized enclosure requirements.

Specify which documents must be delivered before shipment and retained after commissioning: certified drawings, terminal layouts, nameplate information, test records, operation instructions, maintenance guidance, and protection settings required for coordination. These records reduce uncertainty during modifications and fault investigations years later.

Manufacturer capability matters here because quality is not confined to factory testing. Jinshida Electric Power Technology Co., Ltd. supports power transmission and distribution applications with engineering, manufacturing, and quality-management resources intended to provide stable, energy-efficient power equipment. For a critical project, the practical procurement question is whether the supplier can provide the technical clarity, production consistency, documentation, and post-delivery support needed for the selected configuration.

Consider energy storage only when it changes the electrical strategy

Energy storage is not a substitute for correctly specified distribution transformers. It can, however, influence transformer loading, resilience planning, and expansion strategy where a data center uses a microgrid, renewable generation, demand management, or an alternative backup-power architecture. In those cases, charging and discharging profiles must be reflected in load-flow, fault, protection, and thermal studies. Treating storage as an isolated add-on can lead to an inaccurate transformer duty calculation.

Where a containerized storage asset is part of the wider site plan, an integrated option such as the 1MW/2MWh Liquid Cooling Container Energy Storage System may be relevant for evaluating the broader energy architecture. Its role should be assessed alongside the facility's UPS, generator, utility, switchgear, and transformer scheme, not presented as a universal answer to data center continuity requirements.

A practical comparison method for supplier proposals

Comparable quotations should be normalized before a purchase decision is made. Ask each supplier to respond to one electrical duty specification and one commercial schedule. Differences in losses, temperature rise, accessories, tests, enclosure scope, warranty terms, delivery responsibilities, and commissioning assistance should be visible rather than buried in exclusions.

1. Define normal, growth-stage, and contingency load cases, including expected harmonic duty.
2. Confirm the voltage ratio, vector group, impedance range, tap arrangement, and protection interfaces required by the system design.
3. Calculate lifecycle energy impact using the facility's own load profile and energy-cost assumptions.
4. Review room, site, transport, ventilation, fire, and acoustic constraints before comparing equipment types.
5. Evaluate redundancy and load-transfer performance at the one-unit-out condition.
6. Compare documentation, monitoring, maintenance access, spares, technical support, and replacement strategy alongside price.

The final decision should be traceable to these operating conditions. A proposal that is marginally more expensive at purchase may be justified by lower losses, better loading fit, simpler installation, or a stronger recovery position. Conversely, premium features with no link to the site's actual risk or operating model add cost without improving ownership value.

The strongest procurement outcome is a transformer selection that can be explained in plain operational terms: it carries the expected load with suitable thermal margin, integrates cleanly with the protection and redundancy design, can be maintained safely, and avoids unnecessary energy and infrastructure cost throughout the facility's planned life.
