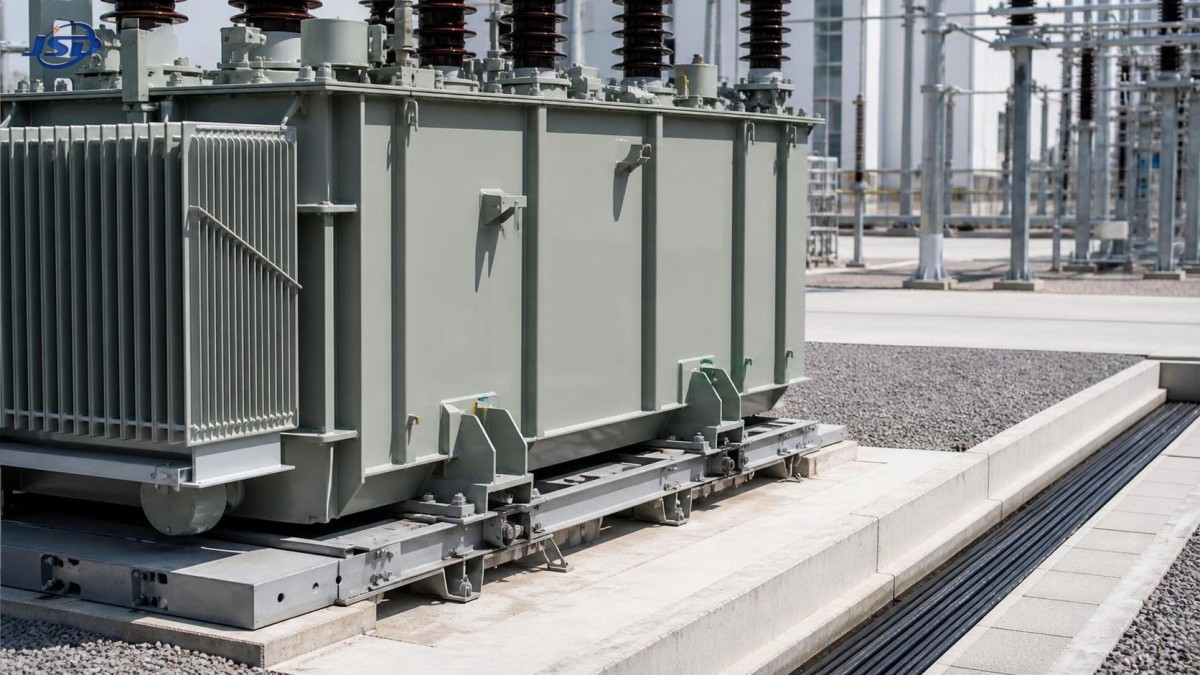

How power transformer supply lead times affect substation schedules

A substation schedule can look stable for months and then become difficult to recover because one major item is not ready to ship: the power transformer. Civil foundations may be complete, cable trenches may be open, switchgear may be staged nearby, and the utility outage window may already be discussed. Yet without the transformer, energization cannot proceed as planned. The cost is not limited to a delayed delivery date. Crews may need to demobilize and return, cranes may require rebooking, stored equipment can occupy valuable site space, and temporary power arrangements may continue longer than expected.

This situation often starts with an assumption that transformer procurement is simply a purchasing task: issue specifications, compare quotations, place an order, and wait. In practice, power transformer supply is closely tied to engineering maturity, factory capacity, component availability, testing arrangements, transport planning, and the readiness of the receiving site. A schedule is more resilient when these dependencies are treated as part of the project plan rather than as details to solve after the purchase order is issued.

The hidden schedule problem behind an “on-time” delivery date

A quoted lead time can be misunderstood if the starting point is unclear. Some suppliers count from receipt of a technically complete order, while others may count from drawing approval, advance payment, or final confirmation of key accessories. If the project team treats the earliest commercial quotation date as the procurement start date, the apparent gap can be substantial.

For a typical substation transformer, the schedule may include electrical design review, loss and impedance confirmation, terminal arrangement selection, cooling and protection accessory decisions, factory documentation, manufacturing, routine testing, release, inland transport, and site delivery. A delay at any stage can shift the next stage. For example, a late decision on cable box dimensions or bushing orientation can affect drawings, fabrication details, and enclosure interfaces. It may be a small design question on paper, but it can hold up a larger manufacturing sequence.

The most troublesome delays are often not dramatic. They are usually a series of minor unresolved items: missing fault-level information, unclear tap range, incomplete control voltage details, uncertain paint requirements, or a transport route that has not been checked for equipment dimensions and weight. When these decisions are left open too long, the factory may be unable to freeze the design even though the order has been placed.

It is also important to separate the transformer’s factory completion from genuine site readiness. A unit can be ready to leave the factory while the access road, oil containment area, foundation rails, lifting plan, or incoming bay is still incomplete. In that case, expedited transport may only move the bottleneck from the factory to the project site.

Where lead times usually expand

Lead time is not determined by transformer capacity alone. Two units with similar ratings may have very different delivery profiles depending on their voltage class, cooling design, taps, accessories, testing scope, and applicable project requirements. Standardized distribution applications can often move through design and production with fewer decisions. A transformer with unusual impedance requirements, special terminal interfaces, nonstandard protection arrangements, or site-specific fit constraints normally needs more engineering coordination.

Long-lead materials and components deserve early attention. Depending on the design, bushings, tap changers, radiators, control cabinets, instrument transformers, cable boxes, and protection-related accessories may affect the build sequence. The practical question is not merely whether each item is available. It is whether the selected component is approved for the exact design and can arrive in time for the manufacturing slot.

Testing can also become a schedule gate. Routine tests are a normal release requirement, but witnessing arrangements, documentation review, and requests for additional verification need to be planned well before the proposed test date. If the responsible technical representatives cannot attend and remote witnessing has not been agreed, final release may be delayed despite the transformer being physically complete.

Transport is another area where optimistic assumptions create trouble. Large equipment may require route surveys, lifting coordination, restricted travel windows, permits, special trailers, or temporary access work. Delivery should therefore be planned as a sequence from factory release to placement on the final foundation, not as a single shipping date.

Start procurement with a decision-ready technical package

The strongest way to reduce uncertainty in power transformer supply is to improve the quality of the information issued for quotation and order. This does not mean every drawing must be finalized before contacting suppliers. It means the major parameters that influence transformer design, manufacturing, and installation should be clearly identified, with unresolved points visibly marked rather than silently assumed.

A useful procurement package normally establishes the required power rating, primary and secondary voltages, frequency, vector group, impedance expectations, cooling method, tapping arrangement, insulation level, installation environment, connection interfaces, protection scope, and applicable standards. The physical conditions matter too: available footprint, foundation arrangement, maximum transport dimensions where relevant, lifting restrictions, enclosure clearances, altitude, ambient temperature, and the expected incoming and outgoing cable arrangement.

Not every item carries the same schedule risk. The better approach is to identify the decisions that would force redesign if changed later. Terminal orientation, impedance, tap configuration, accessory location, and the boundary between transformer supply and site-installed equipment commonly belong in that category. Assign an owner and a decision date for each open item. This makes unresolved engineering visible early enough to manage.

When comparing supplier schedules, ask for milestones rather than one final date. A useful response distinguishes engineering submission, drawing approval, material readiness, production start, factory test period, release documentation, dispatch, and expected arrival. These milestones reveal whether a quoted lead time depends on prompt approvals or on component availability that has not yet been secured.

Match the procurement route to the construction sequence

There is rarely one correct buying strategy for every substation. The right approach depends on whether permanent energization is essential by a fixed date, how stable the electrical design is, and whether the site can progress safely without the final transformer in place.

When the permanent transformer specification is mature and the project has a firm energization target, early commitment is usually easier to defend than attempting to preserve flexibility through delayed ordering. The commercial comparison should include more than the equipment price. A lower initial quote can become less attractive if its longer delivery window creates extended temporary-power costs, repeated mobilization, delayed revenue-generating work, or exposure to a limited outage period.

When the permanent equipment design is still changing, the immediate goal may be to protect the site programme without forcing a premature final transformer decision. For temporary construction loads, emergency restoration, infrastructure works, mining activity, or short-duration electrical installations, a mobile packaged arrangement may be worth evaluating separately from the permanent substation design.

For example, a Mobile Temporary Compact Substation can be considered where a rapid, outdoor temporary supply is needed while permanent works continue. Available configurations include 500kVA to 1250kVA ratings, high-voltage options from 10kV through 35kV, and 0.4kV low-voltage output, with trailer-mounted or skid-mounted deployment. It integrates a transformer, high- and low-voltage switchgear, protection devices, and control systems. This does not replace the need to plan the permanent installation, but it can reduce pressure on activities that depend on temporary distribution, provided the voltage, protection coordination, load profile, access conditions, and local approval requirements are reviewed.

The key distinction is between a temporary bridge and an unplanned substitute. Temporary equipment should have a defined purpose, interface plan, operating responsibility, and removal point. Otherwise, it can become another poorly coordinated asset that complicates commissioning.

Use the supplier discussion to test schedule credibility

A purchase decision should not rely only on a promised delivery week. Ask the supplier to explain the assumptions behind the date. Is the manufacturing slot reserved? Which technical inputs are still required? Are the major bought-out components already allocated, or will they be ordered after approval? How much time is allowed for drawing review? What event triggers the factory test booking?

These questions do not need to turn a commercial discussion into an adversarial exercise. Their purpose is to identify whether the date is a controlled plan or a preliminary estimate. A credible schedule generally shows a logical relationship between engineering completion, production, testing, release, and logistics. It also states which events are controlled by the purchaser, such as approval of general arrangement drawings, nameplates, terminal plans, or test documentation.

Technical clarification should be managed with discipline. Sending several isolated comments to different contacts can lead to conflicting revisions. It is more reliable to maintain one controlled comment register, identify the current drawing revision, and close each item in writing. If a requested change affects cost or time, it should be evaluated before approval rather than treated as an informal adjustment.

Factory inspections and test witnessing should be scheduled early. Confirm who will attend, what records must be submitted beforehand, whether virtual participation is acceptable, and how nonconformities would be handled. A test date is only valuable if the release process following the test is equally clear.

Build a schedule that can absorb normal uncertainty

Transformer delivery should be connected to the construction programme through realistic predecessor and successor activities. Before delivery, the team may need completed foundations, verified dimensions, oil containment provisions where applicable, safe access, lifting equipment, storage arrangements, earthing interfaces, and a prepared receiving inspection process. After delivery, there may be assembly, oil handling or checks, cable termination, protection testing, functional checks, and energization approvals.

One common planning error is to schedule the transformer arrival exactly on the first possible installation date. This leaves no room for a transport delay, weather disruption, document hold, missing accessory, or site-access conflict. A more practical programme includes float around the delivery and installation interface, especially when transport requires special handling.

Risk should be reviewed according to its effect on the critical path. A late cosmetic document may be inconvenient but may not prevent installation. A late bushing, control cabinet interface drawing, or test release document can stop the next activity entirely. Distinguishing between these types of risk helps the team focus attention where it protects the schedule most effectively.

Regular progress updates are useful only when they are evidence-based. Instead of accepting a general statement that manufacturing is “on track,” request the current status of approved drawings, component readiness, production stage, planned test date, release requirements, and dispatch preparation. This creates an early-warning system without requiring daily intervention.

When a delay is already visible

Once a supply delay appears likely, the first task is to establish the actual constraint. It may be a pending technical approval, a component issue, a production-slot change, an incomplete payment condition, a failed or postponed test, or a logistics restriction. Different causes require different responses. Pressing for an earlier ship date will not solve a problem caused by an unresolved terminal design or an unready site foundation.

Then examine which work can be resequenced without creating rework or safety issues. Civil finishing, cable route preparation, control wiring, protection-panel work, communications infrastructure, access-road improvements, and commissioning documentation may sometimes continue independently. The aim is not to make activity appear busy; it is to preserve work that will still be needed when the transformer arrives.

Temporary power arrangements may also need review if the delayed transformer affects construction operations or a planned cutover. The decision should compare practical load needs, duration, connection conditions, fuel or utility costs where relevant, installation effort, and the risk of changing the temporary arrangement later. A smaller temporary supply may be enough for site services, while process loads may require a more substantial plan.

Finally, record the lesson in the next procurement cycle. If the root cause was late technical freeze, set earlier internal decision gates. If it was unclear delivery responsibility, define the logistics boundary in the contract. If test witnessing created a hold point, reserve resources before production reaches that stage. Lead-time management improves when it becomes a repeatable project discipline rather than a response to the latest delivery concern.

Reliable power transformer supply is not achieved by choosing the shortest quoted lead time alone. It comes from aligning equipment specification, supplier milestones, transport realities, site readiness, and contingency planning. When those elements are visible early, a transformer becomes less of an unpredictable critical-path item and more of a controlled part of the substation schedule.
