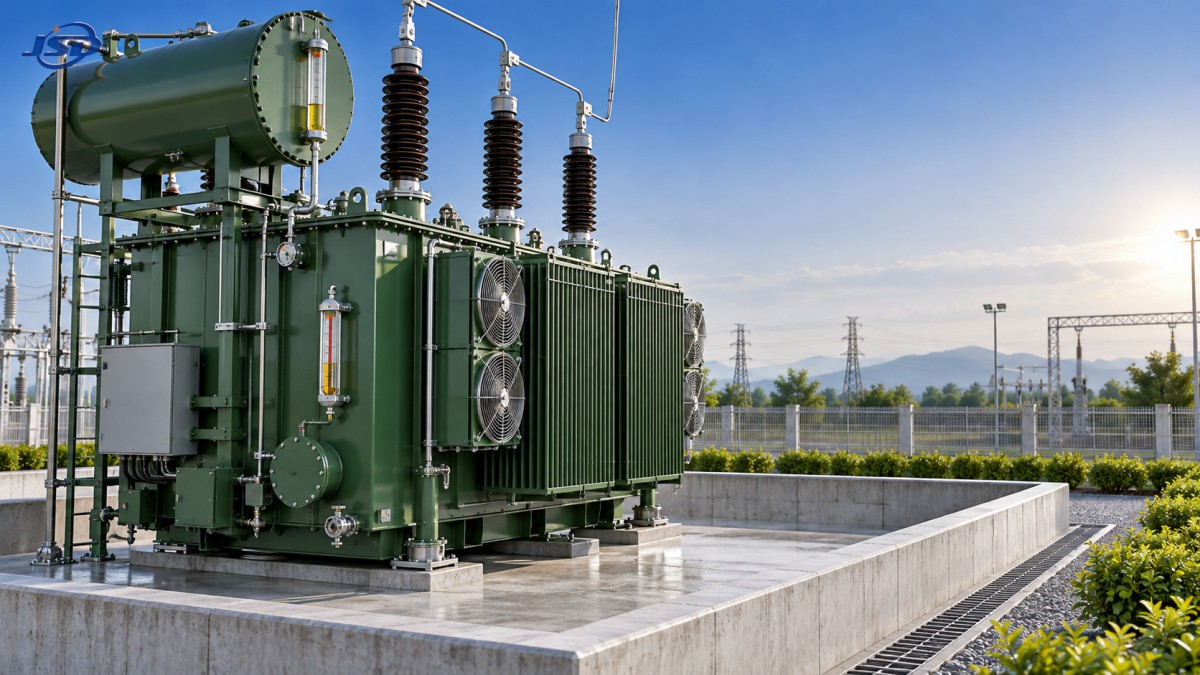

Mineral Oil vs. Natural Ester in Oil-Cooled Substation Transformers

Mineral Oil vs. Natural Ester in Oil-Cooled Substation Transformers

Selecting the insulating liquid for an oil cooled substation transformer is not a routine material choice. The fluid affects fire protection strategy, insulation ageing behavior, cooling design, maintenance practice, environmental exposure, and the economics of the asset over decades. Mineral oil remains the established reference fluid for many power and distribution applications, while natural ester has become a serious option where fire safety, biodegradability, or moisture management carry greater weight.

For a technical evaluator, the useful question is rarely “Which fluid is better?” A more defensible question is: which fluid, transformer design, protection arrangement, and maintenance plan best fit this site? The answer may differ between an outdoor utility substation in a cold region, a compact urban installation, a chemical plant, a renewable-energy collection system, and a rectifier-fed industrial load.

The Fluid Is Part of the Transformer Design

Both mineral oil and natural ester provide dielectric insulation and transfer heat from windings and core to the tank and radiators. But they do not behave identically in service. A transformer optimized for one liquid should not be treated as automatically interchangeable with the other. Viscosity, oxidation stability, moisture distribution, dielectric characteristics, cooling channel geometry, sealing approach, and liquid-processing procedures all need review.

Mineral insulating oil has a long operating history, widely established supply channels, and familiar diagnostic methods. It is commonly specified under IEC 60296, subject to the project’s applicable edition and local requirements. Natural ester fluids are vegetable-oil-based insulating liquids; IEC 62770 addresses unused natural esters intended for electrical equipment. These standards are starting points, not complete transformer specifications. The transformer itself must still be designed and tested under the relevant IEC 60076 requirements, customer specifications, and installation rules.

This distinction matters during bid evaluation. A liquid specification alone does not prove that an oil cooled substation transformer has suitable thermal margins, compatible accessories, or an appropriate fire-risk concept. Evaluators should request the manufacturer’s stated fluid type, cooling duty, temperature-rise basis, overload assumptions, and restrictions on future fluid replacement or mixing.

Fire Safety: Often the First Reason to Consider Natural Ester

Natural ester is frequently selected because it has a substantially higher fire point than conventional mineral oil. That characteristic can be valuable where transformers are near occupied buildings, tunnels, transportation interfaces, process units, or constrained sites with strict fire-engineering expectations. Depending on the governing code and insurer requirements, the use of a less-flammable liquid may support a different approach to separation distances, containment, barriers, or fire suppression.

It should not, however, be interpreted as eliminating fire risk. Bushings, cable boxes, external fault energy, adjacent combustible materials, ventilation, pressure relief, and fault clearing times remain part of the site-level assessment. A natural ester transformer still requires a coordinated protection and installation design. Fire-point values should be verified from the specific liquid data sheet and assessed against the definitions used by the applicable local standard or authority.

Mineral oil can remain entirely appropriate where the transformer is installed outdoors with adequate separation and conventional containment, or where the owner’s established protection philosophy already addresses its fire characteristics. In these cases, mineral oil’s lower initial cost and simpler service ecosystem may be more influential than the benefits of an ester fluid.

Environmental Exposure and Spill Consequences

Natural esters are generally regarded as more readily biodegradable than mineral oil, making them attractive for environmentally sensitive locations. Projects near watercourses, agricultural land, protected areas, or densely developed areas may place significant value on this property. Yet biodegradability should not be confused with permission to release fluid. A spill can still affect soil, drainage systems, and nearby water, and local environmental requirements may still require bunding, oil-water separation, emergency procedures, and recovery planning.

The environmental decision should therefore include the full installation. Review tank integrity, secondary containment volume, drain routing, leak detection, access for recovery, and the route by which used liquid will be handled. A fluid with a stronger environmental profile does not compensate for poorly designed containment.

Thermal Performance Is More Nuanced Than “Better Cooling”

A common oversimplification is that one liquid always cools better. In practice, thermal performance is a transformer-level result. Natural ester normally has higher viscosity than mineral oil, especially as temperature falls. Higher viscosity can reduce natural convection and change heat transfer through winding ducts and radiator circuits. The manufacturer may respond through winding layout, duct dimensions, radiator selection, tank design, or a different thermal rating basis.

For ONAN-cooled equipment, this design relationship deserves particular attention because circulation depends on natural convection. In forced-cooling arrangements, pump selection and hydraulic characteristics become additional considerations. The evaluation should look beyond nominal MVA and ask how top-oil temperature, winding hot-spot temperature, ambient conditions, and loading profile were addressed for the selected liquid.

Low-temperature behavior also deserves early review. Natural esters may have higher pour points than mineral oil formulations designed for cold climates. If the transformer will face sustained low ambient temperatures, long idle periods, or cold start conditions, the liquid’s low-temperature properties and the manufacturer’s design guidance should be part of the technical clarification. This is not a reason to exclude ester by default; it is a reason to avoid transferring a warm-climate design assumption into a cold-climate project.

Moisture Tolerance Can Change the Insulation Ageing Conversation

One of the more meaningful differences is water affinity. Natural ester can hold considerably more dissolved water than mineral oil. In a properly designed ester-filled transformer, this tendency may draw moisture away from cellulose insulation, which can be beneficial because paper condition is central to transformer life. Lower moisture in solid insulation can support improved dielectric margin and slower cellulose degradation under suitable operating conditions.

The practical consequence is that oil moisture results cannot be interpreted with mineral-oil habits. A moisture concentration that appears high in the liquid may not indicate the same paper condition it would in mineral oil. Diagnostic limits, equilibrium charts, sampling practices, and trending methods must be appropriate for the actual fluid. Comparing a natural ester dissolved-water result directly with a mineral-oil alarm level is a frequent source of unnecessary concern or incorrect maintenance action.

Ageing diagnostics also require fluid-specific interpretation. Dissolved gas analysis remains valuable, but gas-generation patterns and assessment methods can differ between mineral oil and ester fluids. Laboratories and maintenance teams should confirm that their procedures, reference values, and analytical experience apply to the selected liquid. A good liquid choice can be undermined by an unsuitable diagnostic program.

Maintenance, Processing, and Retrofit Boundaries

Mineral oil benefits from a mature service infrastructure. Many operators already have established protocols for sampling, filtration, dehydration, reclamation, testing, storage, and disposal. Natural ester maintenance is not inherently difficult, but it should not simply be managed as mineral oil under another name. Exposure to air, moisture control, oxidation management, fluid handling temperatures, and compatibility with seals, paints, gaskets, and accessories need to follow the manufacturer’s instructions.

Retrofilling an existing mineral-oil transformer with natural ester can be technically possible in some circumstances, but it is a project-specific engineering decision. Residual mineral oil, cooling capability, gasket compatibility, tank condition, bushing interfaces, protection settings, and the expected loading cycle should be evaluated before any commitment. The result may be a successful life-extension measure, or it may reveal that a purpose-designed ester transformer is the safer route.

For new equipment, the cleanest approach is to specify the intended liquid at the beginning of design. It allows the manufacturer to coordinate insulation clearances, thermal performance, material compatibility, test procedures, and documentation rather than treating the fluid as a late-stage substitution.

Industrial Loads Need a Broader View Than Fluid Selection

In metallurgy, electrolysis, electroplating, rail transit, mining, and chemical processing, transformer selection may be driven as much by harmonic loading, cyclic duty, overload capability, and isolation requirements as by the insulating liquid. Rectifier systems can impose waveform distortion and thermal stress that require dedicated electromagnetic and thermal design. The fluid decision should be made within that wider duty profile.

For example, an Isolation and Rectifier Special Transformer can be configured for three-phase applications from 50kVA to 5000kVA, with high-voltage options including 6kV, 10kV, 20kV, and 35kV, customized low-voltage arrangements, and Dyn11 or Yyn0 connection groups. Its ONAN or AN cooling configuration, 100% copper windings, indoor or outdoor installation requirements, and IEC 60076 alignment should be reviewed alongside the actual rectifier duty. In a high-risk process area, the decision between mineral oil and ester may be important; it is still only one item in the complete thermal and electrical evaluation.

A Practical Evaluation Framework

A useful comparison starts with the installation rather than the liquid. The following questions tend to expose the real decision drivers:

• Is the transformer close to people, buildings, process equipment, transport infrastructure, or environmentally sensitive land?
• What fire-risk requirements are imposed by local authorities, insurers, owner standards, and the overall site protection study?
• What ambient-temperature range, load cycle, overload expectation, and cooling mode will apply over the equipment life?
• Does the owner have maintenance teams and laboratories familiar with the selected fluid and its diagnostic interpretation?
• Are there operational limits on fluid storage, spill response, filtration, recycling, or replacement availability?
• Will harmonics, rectification duty, renewable variability, or frequent switching create an insulation and thermal profile beyond standard distribution loading?

The lifecycle-cost comparison should be equally disciplined. Initial fluid cost is visible, but it is not the full cost. Fire-protection civil works, containment arrangements, insurance considerations, site footprint, outage consequences, maintenance capability, and expected loading can all alter the project outcome. Natural ester may justify its premium where fire or environmental constraints would otherwise demand substantial external mitigation. Mineral oil may remain the more economical and maintainable solution where those constraints are limited and conventional infrastructure is already in place.

Specify the Evidence, Not Just the Fluid Name

A strong technical specification does not stop at “mineral oil filled” or “natural ester filled.” It identifies the applicable fluid standard, transformer standard, temperature-rise and loading requirements, ambient conditions, cooling class, fire-safety expectations, material-compatibility obligations, liquid-test documentation, and maintenance information to be supplied at handover. If future retrofilling is contemplated, that requirement should be stated early rather than assumed.

Jinshida Electric Power Technology Co., Ltd. approaches power equipment selection through this project-specific lens: matching manufacturing design, quality controls, and service information to the operating conditions of grid, industrial, new-energy, and infrastructure applications. For technical evaluators, the most useful next step is to align the liquid choice with an agreed loading profile, installation risk assessment, and relevant IEC or local requirements before the transformer design is frozen.
