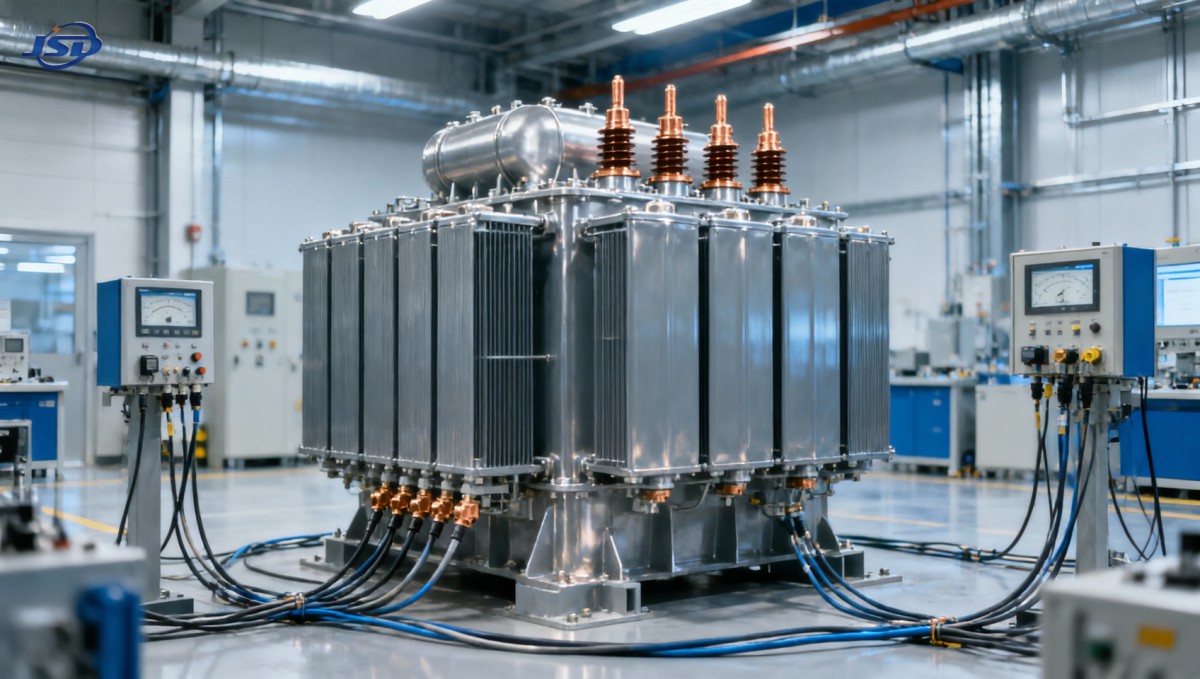

Low Loss Distribution Transformer: Which Loss Figures Matter in Procurement?

A low loss distribution transformer should not be selected on the basis of one attractive efficiency figure. For procurement, the meaningful comparison is the loss profile under the project’s expected operating pattern: no-load loss, load loss, auxiliary consumption where applicable, and the financial value assigned to those losses over the transformer’s service life.

A unit with the lowest quoted total loss is not automatically the lowest-cost purchase. A transformer that runs continuously at light load has a different loss priority from one that supports a heavily loaded industrial process for long shifts. The procurement task is to compare like for like, convert technical losses into operating cost using the project’s own assumptions, and confirm that the quoted figures are achievable in the specified design.

Start with the two loss figures that drive the decision

Transformer losses are usually separated into no-load loss and load loss. They behave differently, so combining them into a single headline number can hide an important commercial difference.

No-load loss is often called core loss or iron loss. It remains broadly constant while voltage and frequency stay near their rated values. A distribution transformer in a network substation may remain energized all day, every day, including periods when demand is low. In that situation, an apparently modest reduction in core loss can have a meaningful lifetime effect because it is present for nearly every operating hour.

Load loss is commonly described as winding or copper loss, although the tested value includes more than simple winding resistance. It rises approximately with the square of load current. At half rated current, this component is much lower than at rated current; at sustained high loading, it becomes a major source of energy cost and temperature rise. A procurement comparison that focuses only on core loss can therefore make the wrong choice for a transformer expected to operate near its capacity.

The practical question is not “which supplier has the lowest loss?” It is “which loss balance suits the load duration curve of this installation?” Ask the engineering team for expected minimum, normal, peak, and annual average loading before setting the evaluation method.

Efficiency at rated load is useful, but incomplete

Supplier literature may state a high efficiency value at rated capacity. It is a useful data point, but it does not show how the transformer performs through a full year. Efficiency changes with loading because no-load loss stays relatively stable while load loss changes with current.

For a lightly loaded transformer, core loss can account for a large share of total loss. For a highly utilized transformer, winding-related loss becomes more influential. The load at which the two values are equal is often called the point of maximum efficiency. That point can help assess a design, but it should not replace the project’s actual operating profile.

Request efficiency or calculated loss values at several relevant load points, such as expected base load, normal operating load, and foreseeable high-load condition. The supplier should identify the reference temperature used for load loss, since winding resistance changes with temperature. Comparing one supplier’s losses at one temperature with another supplier’s losses at a different temperature is not a valid commercial comparison.

Turn loss data into a lifetime procurement comparison

Purchase price is immediate and visible; energy loss cost is spread across operation. A disciplined evaluation gives both a place in the award decision. The simplest approach is to estimate annual energy loss from no-load loss plus the load loss adjusted for the expected loading pattern, then apply the site’s energy valuation and the organization’s normal financial assumptions.

For variable loads, do not use rated load as the default unless the transformer will genuinely operate there most of the time. Load loss follows the square of the load ratio. A transformer operating at 60% of rated current does not incur 60% of its rated load loss; it incurs roughly 36%, before allowing for real-world variations. A load profile based on meter data, production schedules, or grid planning is more useful than a nominal capacity label.

Procurement teams do not need to create a complicated financial model for every tender. They do need a consistent loss capitalization method for all bidders. Set the assumed annual energized hours, load profile, energy value, evaluation period, and treatment of future energy cost before quotations are opened. Then suppliers compete against the same technical and economic basis.

Where the buyer uses a formal loss valuation, it is helpful to show separate values for no-load and load loss rather than awarding on a single combined number. This prevents a supplier from reducing one loss category while increasing the other in a way that looks favorable on paper but does not suit the application.

Make sure the quoted figures are comparable

The most common procurement error is comparing loss values that appear similar but were generated under different conditions. A quotation schedule should require each supplier to state the following clearly:

• Rated capacity, rated voltage ratio, frequency, phase arrangement, and vector group.
• Guaranteed no-load loss and guaranteed load loss, with the stated reference temperature for load loss.
• Tap position at which the losses apply, particularly where an off-circuit or on-load tap changer is specified.
• Cooling method and the relevant rating basis.
• Applicable design and test standard, together with the proposed routine and agreed type-test documentation.
• Permitted manufacturing tolerance, the buyer’s remedy for excess loss, and the testing method used for acceptance.

Losses are meaningful only when voltage, impedance, insulation level, temperature rise, cooling arrangement, and duty requirements are also equivalent. A lower-loss proposal that quietly changes impedance, reduces thermal margin, or relies on a different rating condition is not a direct substitute. Engineering review should screen those differences before commercial ranking.

The bid document should also distinguish between guaranteed losses and indicative design values. Guaranteed figures belong in the contractual technical schedule. Acceptance testing should verify the delivered transformer against that schedule. This matters because small deviations in loss performance become recurring operating costs for the owner.

Low loss does not remove the need to specify the duty

A low loss distribution transformer for a utility feeder, a factory auxiliary supply, a solar collection system, and a rail or process installation may all require different compromises. Ambient temperature, altitude, ventilation, harmonic content, overload cycles, switching duty, and space limitations affect both the appropriate design and the value of a loss reduction.

Harmonics deserve particular attention in industrial and power-electronic applications. Non-linear loads can create additional heating and stray losses that are not represented by a basic sinusoidal, rated-load comparison. In these cases, the buyer should provide harmonic data or the rectifier arrangement to the manufacturer early. Selecting a standard low-loss unit based only on nameplate capacity can leave inadequate thermal margin or lead to unnecessary derating later.

For metallurgy, electrolysis, electroplating, chemical processing, mining, rail systems, and other rectifier-driven duties, isolation, waveform conditions, and overload capability may be as important as the conventional distribution-loss figures. A purpose-designed Isolation and Rectifier Special Transformer can be assessed as a separate solution when the project requires electrical isolation and stable power for rectifier equipment. Its loss schedule still needs to be reviewed against the actual duty, voltage arrangement, cooling method, and operating waveform; it should not be compared mechanically with a standard distribution transformer.

Where buyers often spend more than necessary

The lowest initial quotation can be expensive over the operating life, but the opposite error also occurs: paying a premium for very low core loss when the asset is expected to operate at high utilization and the proposal carries materially higher load loss. Neither decision can be made from a brochure efficiency claim.

Oversizing is another frequent source of poor economics. A larger transformer may provide contingency capacity, but it may also carry higher no-load loss while spending most of its life lightly loaded. The answer is not always to select the smallest unit. Future load growth, redundancy policy, and overload requirements may justify reserve capacity. The point is to quantify that reserve rather than treating it as free.

Material descriptions can also distract from the real evaluation. Copper windings are often selected for conductivity, thermal performance, and mechanical strength, but winding material alone does not establish total loss, reliability, or lifecycle cost. Evaluate the guaranteed tested loss figures, thermal design, short-circuit withstand requirements, and manufacturer documentation as a complete package.

A practical sequence before placing the order

1. Define the duty: confirm supply voltage, frequency, load profile, expected growth, installation environment, cooling constraints, and any harmonic or rectifier load.
2. Set the comparison basis: state the required standard, transformer rating, tap conditions, reference temperature, and loss capitalization assumptions in the enquiry.
3. Separate technical compliance from price: reject or normalize proposals that use a different impedance, temperature-rise limit, cooling basis, or loss reference condition.
4. Evaluate lifecycle cost: compare purchase price with the calculated value of no-load and load losses at realistic operating conditions.
5. Contract the guarantee: include loss limits, test requirements, documentation, and the consequence of non-compliance in the purchase order.

Supplier capability is relevant after the technical basis is clear. A manufacturer with engineering support, controlled production processes, and disciplined quality management is better positioned to align the design, test documentation, and project-specific requirements. Jinshida Electric Power Technology Co., Ltd. supports transmission and distribution applications across grid, industrial, new-energy, and infrastructure projects, where reliable performance depends on matching the transformer design to the operating duty rather than treating loss reduction as an isolated specification.

FAQ

Should procurement award the order to the transformer with the lowest no-load loss?

Only when the transformer will remain energized for long periods at relatively low loading and the rest of the technical specification is equivalent. At higher utilization, load loss may have a larger economic effect.

Can two transformers with the same rated capacity have very different operating costs?

Yes. Their core and load losses, expected loading pattern, cooling conditions, and exposure to harmonics can produce different energy consumption and thermal behavior over time.

Is a lower loss figure always evidence of a better transformer?

No. It must be assessed alongside guaranteed test conditions, impedance, temperature rise, insulation design, overload duty, and the actual application. A low figure obtained under a non-equivalent specification is not a useful comparison.

What should be included in a transformer loss guarantee?

Include separate no-load and load-loss limits, the reference temperature for load loss, relevant tap position, test method, acceptance documentation, and the contractual treatment of excess losses.
