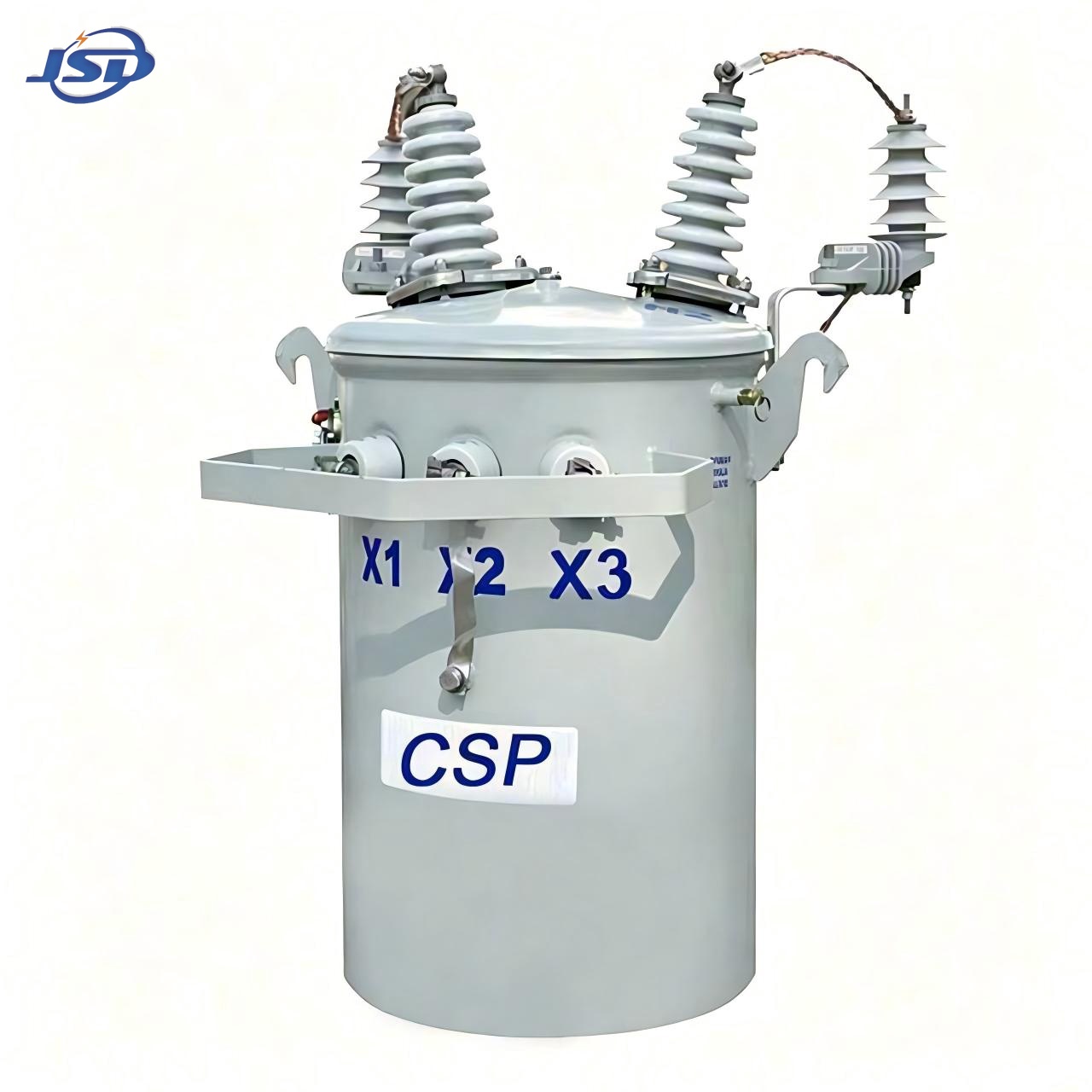

Pole Mounted Single Phase Transformer overview

1.Low loss, energy saving,The maximum voltage is 36kV and the maximum capacity is 500KVA
2.Actual measurement is better than ANSI/IEEE and IEC standards, DOE2016, UL cUL CSA certification.
3.High efficiency and energy saving roll iron core structure design, use the pole hanging installation.
4.More than 50 countries and regions around the world run verification of high reliability.
5.It is mainly used in suburban distribution network, agricultural production and civil building power supply and distribution system
6.Executive standards: IEEE C57, ANSI C57, IEC76, GB10318

Pole Mounted Single Phase Transformer advantages
1.High voltage copper wire winding technology to improve lightning resistance performance

2.Low voltage foil winding technology, high-quality A-E grade insulation material insulation

3.The material of the iron core is high-quality cold-rolled grain oriented silicon steel sheets with mineral oxide insulation

4.By controlling the process of cutting and stacking silicon steel sheets, the loss level, no-load current, and noise are minimized

Pole-Mounted Single-Phase Transformer Specifications

- Input Voltage: 34.5kV-19.92kV / 13.8kV-7.957kV / 13.2kV-7.62kV / 12.47kV-7.2kV

- Output Voltage: 120-240V / 240-480V / 347V / 600V, or others

- Capacity: 5kVA–500kVA (Max. voltage: 36kV; Max. capacity: 500kVA)

- Note: Voltage, capacity, frequency, connection group, and losses can be customized according to customer requirements.
