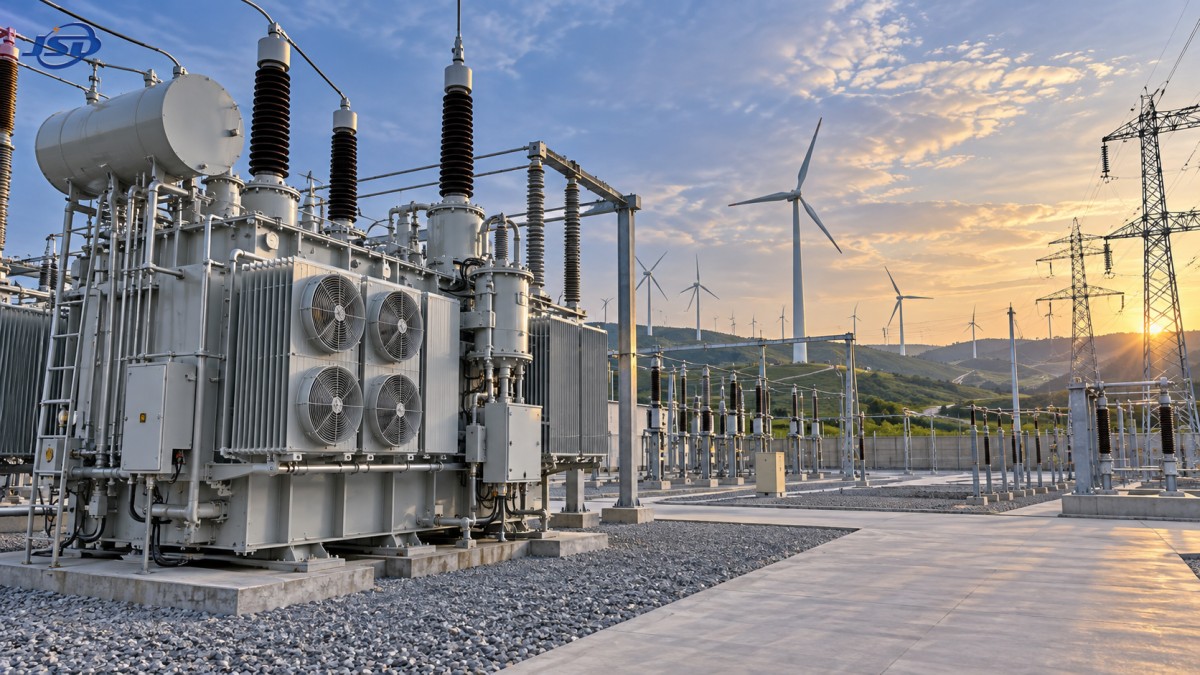

Substation Transformer Design for Wind Farms With Fluctuating Generation

A wind-farm substation transformer cannot be specified as if the plant were a conventional, steadily loaded industrial facility. Its loading profile is governed by wind availability, turbine control behavior, collector-system losses, reactive-power requirements, and grid dispatch conditions. A transformer sized only from installed turbine capacity can be technically compliant on paper yet create avoidable risks in voltage regulation, thermal performance, protection coordination, or future operating flexibility.

The central design question is not simply “What MVA rating is required?” It is whether the transformer, tap-changing arrangement, insulation system, impedance, auxiliary systems, and protection philosophy can maintain reliable delivery at the point of interconnection across the wind farm’s actual operating envelope. For a substation transformer for wind farms, that envelope includes low-output periods, rapid output ramps, sustained high generation, reactive-power operation, harmonic exposure, and grid disturbances.

Start with the electrical operating envelope, not nameplate capacity alone

Installed generation capacity is an essential input, but it is only one input. The transformer’s required continuous rating should be derived from the maximum credible export condition at the high-voltage side, including collector losses, transformer losses, reactive-power flow, ambient temperature, altitude where relevant, and the grid operator’s operational requirements. If the project must provide reactive support while exporting active power, the transformer may see an apparent-power demand above the simple MW export figure.

For example, a plant exporting active power at a power factor below unity requires additional MVA headroom. The same applies where the grid connection agreement requires voltage support over a defined reactive range. Treating the transformer as a passive step-up device can lead to underestimation of loading during high-reactive-output conditions.

Design teams should define, document, and validate at least the following operating states before finalizing the rating:

• maximum active-power export at the contractual point of interconnection;
• maximum active and reactive power operating combinations required by the grid code;
• low-generation and no-generation conditions when reactive devices may remain connected;
• temporary overload conditions permitted by the thermal design and operating philosophy;
• planned curtailment, battery charging, or station-service operating modes where applicable;
• future expansion scenarios that are contractually likely rather than merely theoretical.

A conservative rating margin is not automatically the best answer. Oversizing can raise capital cost, no-load losses, transport complexity, and footprint requirements. The appropriate decision is based on a loss evaluation and duty-cycle assessment, not a blanket percentage allowance. This is especially important where the wind resource produces long periods of partial output: no-load loss then becomes a material lifetime consideration, while peak load capability still has to satisfy the interconnection obligation.

Fluctuating generation changes the thermal assessment

Wind generation varies, but variation itself does not necessarily mean the transformer is exposed to damaging thermal cycling. The relevant issue is the relationship between loading cycles and thermal time constants. Oil-immersed power transformers respond more slowly to short power changes than turbine output curves may suggest. Winding hot-spot temperature, top-oil temperature, ambient conditions, cooling stage operation, and prior loading history must all be considered together.

That distinction matters during design review. A transformer may tolerate short export peaks without requiring a larger continuous rating, provided the proposed loading guide, cooling capability, and insulation thermal limits support that duty. Conversely, repeated high-load intervals during elevated ambient temperatures can accumulate thermal stress even if the annual average load factor appears modest.

The thermal model should be aligned with the applicable project standard and the transformer supplier’s guaranteed capability. IEC 60076-7 provides guidance on loading of oil-immersed power transformers, while IEEE C57.91 is commonly referenced in projects following North American practice. Neither document replaces a project-specific duty-cycle study. The purchaser must provide realistic load profiles and ambient assumptions; otherwise, the supplier can only design around generic conditions.

Cooling selection deserves the same discipline. Natural cooling may simplify the arrangement, but forced-air or forced-oil stages can be justified where site temperature, peak export duration, or rating constraints demand them. More cooling equipment introduces additional auxiliary loads, controls, alarms, maintenance requirements, and failure modes. The decision should therefore include the cooling-system redundancy philosophy and the consequence of one fan bank or pump group being unavailable.

Voltage control is a system function, not a transformer accessory choice

The on-load tap changer (OLTC) is often treated as a routine line item in a transformer specification. In a wind-farm substation, its suitability depends on how voltage is controlled across the entire collection and grid interface system. Turbine converters, cable capacitance, shunt reactors, capacitor banks, STATCOMs, SVCs, and the grid’s short-circuit strength all influence the voltage seen at the transformer terminals.

A weak-grid connection may experience substantial voltage movement when wind output changes or when reactive-power commands are issued. In those conditions, an OLTC control scheme that responds too aggressively can hunt between tap positions, increase mechanical wear, and interact poorly with dynamic reactive compensation. A scheme that responds too slowly may allow voltage excursions that restrict generation or cause turbine control systems to reach their limits.

Coordination requires more than selecting a nominal tap range. The voltage-control study should establish the regulated bus, target voltage, deadband, time delay, line-drop compensation where appropriate, tap limits, reactive-device priority, and blocking conditions. It should also consider abnormal states such as a tripped capacitor bank, unavailable STATCOM, collector feeder outage, or reduced grid strength.

In some projects, the main step-up transformer is specified with an OLTC on the high-voltage winding; in others, the arrangement is driven by utility practice, voltage class, and substation topology. The correct location and range cannot be generalized without system studies. What should be avoided is accepting a standard tap changer arrangement before the grid studies, reactive-power design, and control architecture have been reconciled.

Impedance must balance fault duty, voltage drop, and parallel operation

Transformer impedance affects several project-critical outcomes. Lower impedance can improve voltage regulation but increases prospective fault current. Higher impedance can help limit fault duty but may worsen voltage drop and reduce fault-current sensitivity for protection. The preferred value must work with the utility source strength, collector system, switchgear interrupting ratings, cable design, and protection settings.

This becomes more demanding when multiple main transformers operate in parallel, when a wind farm is built in phases, or when a shared substation accommodates other generation sources. Parallel transformers require compatible voltage ratios, vector groups, impedance characteristics, tap settings, and phase displacement. A mismatch can cause circulating currents or uneven load sharing, reducing usable capacity even when each unit is individually correctly rated.

Fault calculations should not be deferred until after transformer procurement. The selected impedance and vector group influence earth-fault paths and relay performance. In wind farms, converter-based generation may contribute fault current differently from synchronous generation, often with controlled magnitude and short duration. Protection engineering must therefore consider both transformer characteristics and the actual fault contribution behavior of the turbine and plant controller configuration.

Harmonics and waveform quality require explicit responsibility

Modern wind turbines use power electronic converters. Their output is filtered and controlled, but harmonic performance remains a system issue rather than a turbine-only issue. Harmonic currents can create additional losses and heating in transformer windings, tank structures, leads, and associated equipment. Resonance between cable capacitance, reactive compensation equipment, and network inductance can amplify selected frequencies under particular switching configurations.

The transformer specification should state the expected harmonic current spectrum or reference the harmonic study that will govern the design. A generic statement that the transformer must be “suitable for harmonics” is insufficient. The manufacturer needs a defined basis to assess additional losses, thermal impact, and any design measures required. The plant-level harmonic assessment should also account for the number of turbines online, cable network configuration, capacitor or reactor status, and grid impedance assumptions.

Compliance responsibilities need to be unambiguous. Grid codes and interconnection agreements may define voltage-distortion limits at the point of connection, but compliance depends on the combined behavior of turbines, cables, filters, compensation equipment, transformers, and utility network conditions. Assigning the requirement solely to one equipment supplier is a frequent contractual gap.

Insulation and physical design must match the site, not a catalog environment

Wind farms are frequently located in environments that are difficult for conventional substation equipment: coastal salt exposure, desert dust, high altitude, severe cold, high humidity, remote access routes, or constrained crane availability. These conditions affect bushing selection, creepage distance, corrosion protection, enclosure ratings, cooling arrangement, oil preservation system, radiators, marshalling kiosks, and transport design.

At high altitude, reduced air density can affect external insulation coordination and cooling performance. In cold climates, oil viscosity, low-temperature materials, control cabinet heating, and energization practices require attention. Coastal locations may demand a more robust anti-corrosion system and contamination-resistant external insulation. These are not optional environmental add-ons; they influence the transformer’s ability to meet its electrical and thermal guarantees throughout its intended service life.

Transport constraints should be closed early. A higher rating or special bushing arrangement may push transport mass, dimensions, axle loads, or lifting requirements beyond what site roads and bridges can accommodate. If field assembly is contemplated, the project schedule must include the additional quality controls, oil handling, drying processes, testing, and weather protection that such work requires.

Loss evaluation should reflect wind-farm operating reality

Transformer purchase price is visible at bid stage; energy losses are incurred throughout operation. A meaningful comparison separates no-load loss from load loss and applies expected operating conditions rather than an assumed constant load factor. No-load loss is present whenever the transformer is energized, including low-wind periods. Load loss rises approximately with the square of load current, so its economic weight depends heavily on the expected output distribution and reactive-power duty.

Loss capitalization is useful only if the energy valuation, operating horizon, curtailment assumptions, and financial methodology are consistent across bids. A technically attractive low-loss design can appear uneconomic if evaluated with unrealistic energy prices or if the project does not recognize the value of reduced losses in its contractual structure. Conversely, selecting the lowest initial-cost unit without comparing guaranteed losses can lock in avoidable operating expense.

Guarantees should specify the reference temperature, tolerances, test method, and treatment of auxiliary consumption. Where cooling stages are expected to operate frequently, fan and pump energy should be included in the station auxiliary-load assessment.

Protection, monitoring, and maintainability determine whether a fault becomes an outage

Transformer protection should be designed as part of the plant protection philosophy, including differential protection, restricted earth fault where applicable, overcurrent and earth-fault backup, sudden-pressure protection, Buchholz relay for conservator-type units, temperature alarms, pressure-relief devices, and OLTC protection. Device selection depends on the transformer construction and substation scheme, but alarm and trip signals must be mapped clearly into the SCADA and operating procedures.

Condition monitoring should be proportionate to criticality. Oil temperature, winding temperature, cooling status, oil level, pressure, and OLTC position are foundational signals. Online dissolved-gas analysis, bushing monitoring, moisture monitoring, and enhanced thermal analytics may be justified where transformer failure would cause prolonged generation loss or where access is difficult. Monitoring is valuable only when thresholds, data ownership, communication reliability, and response responsibility are defined.

A small mobile energy storage unit does not replace substation auxiliary power design, but it can support temporary commissioning activities, communication loads, or short-duration field services where a permanent supply is not yet available. For such limited site-support roles, a 50kW/100kWh Portable Trailer Energy Storage System provides a trailer-mounted option with LiFePO4 storage, 400V AC output, and IP54 protection. Its role should remain clearly separated from protection-grade DC systems, station batteries, and emergency supply arrangements required for the operational substation.

Procurement documents should force decisions before manufacturing begins

Many transformer disputes arise because key assumptions remain implicit until design approval. A robust technical specification should identify the interconnection voltage, rated power and duty cycle, vector group, impedance basis, tap changer requirements, insulation levels, short-circuit withstand requirements, loss guarantees, harmonic duty, environmental conditions, cooling arrangement, auxiliary supply, monitoring interfaces, factory test requirements, transport limits, and applicable standards.

IEC 60076 is widely used as a core transformer standard series, but project specifications often need additional requirements for grid connection, utility practice, seismic conditions, fire safety, acoustic limits, control interfaces, and testing. Standards establish a framework; they do not decide the unresolved system parameters for a particular wind farm.

Factory acceptance testing should verify more than routine electrical values. Review the guaranteed loss results, impedance, ratio and vector group, insulation tests, tap changer functional tests, cooling control logic, alarm contacts, wiring interfaces, nameplate data, and documentation package. Before shipment, the project team should also confirm preservation method, impact-recording requirements where used, oil treatment plan, site test scope, and energization prerequisites.

A reliable wind-farm transformer design emerges when generation behavior, grid obligations, network studies, environmental exposure, and execution constraints are treated as one engineering problem. Capacity remains important, but it is only the starting point. The decisive specification is the one that defines how the transformer will behave when the wind farm is operating at its electrical limits—not merely how it appears under nominal conditions.
